Joint Shaft Disassembly

JOINT SHAFT DISASSEMBLY [MZI 3.7 V6]

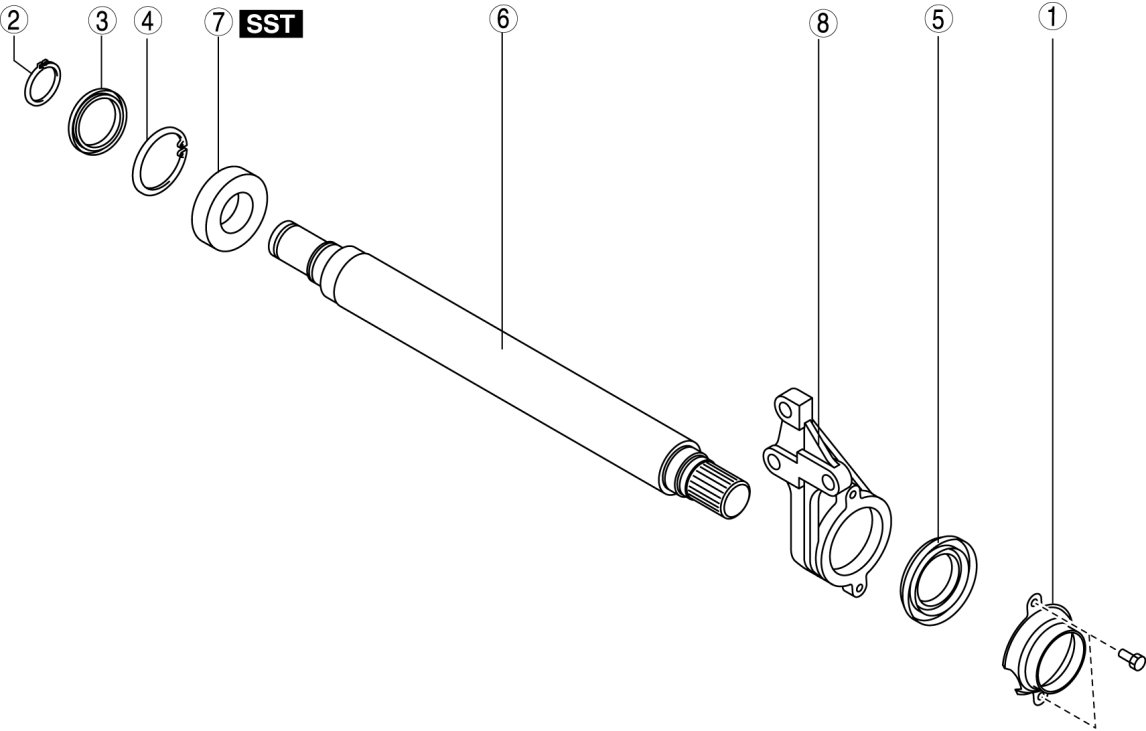

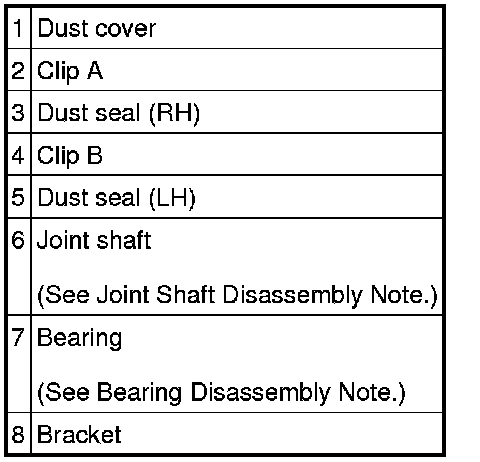

1. Disassemble in the order indicated in the table










Joint Shaft Disassembly Note

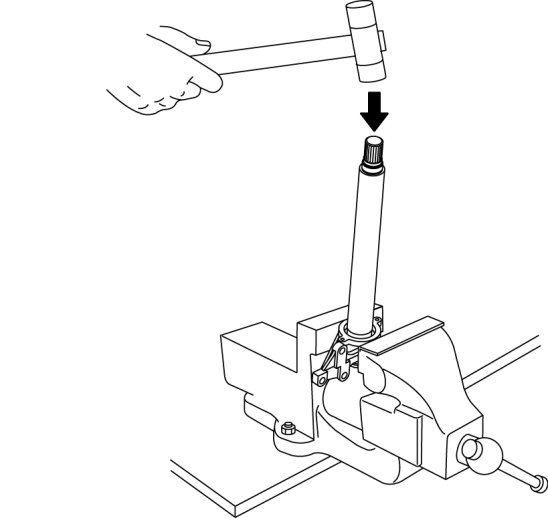

1. Secure the bracket to the vise at the position shown in the figure and remove the joint shaft using the plastic hammer.






Bearing Disassembly Note

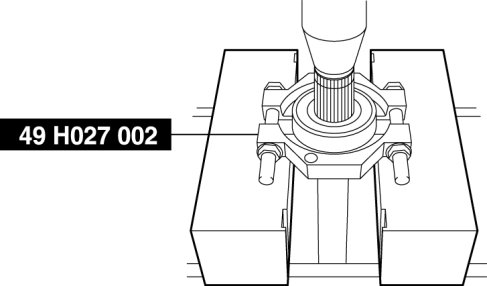

1. Remove the bearing from the joint shaft using the SST and a press.
