Joint Shaft Assembly

JOINT SHAFT ASSEMBLY [MZI 3.7 V6]

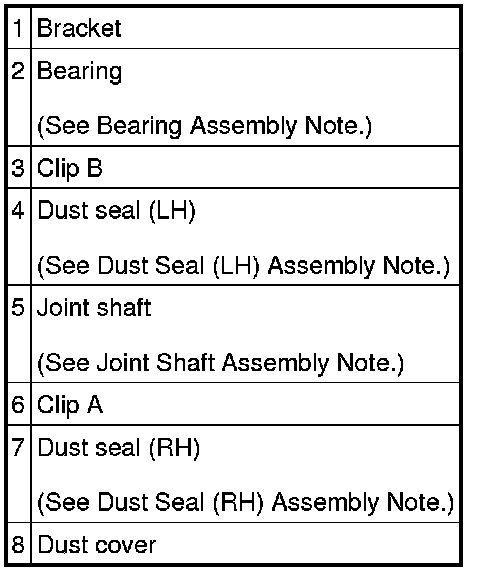

1. Assemble in the order indicated in the table

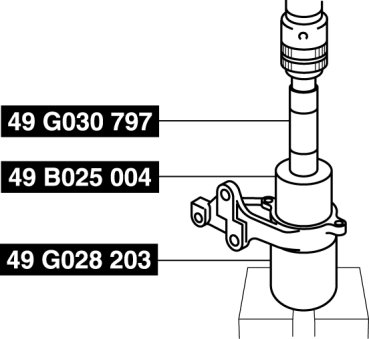

Bearing Assembly Note

1. Install the bearing using the SSTs and a press.






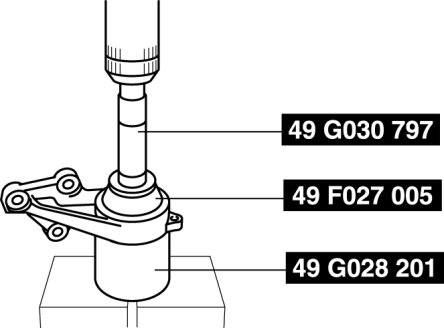

Dust Seal (LH) Assembly Note

1. Apply grease to a new dust seal (LH) lip.

2. Install a new dust seal (LH) using the SSTs and a press.

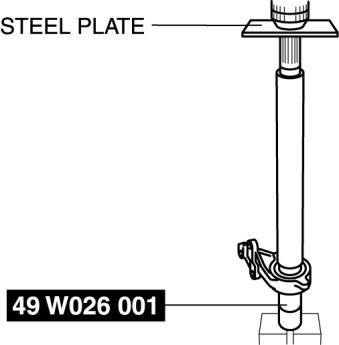

Joint Shaft Assembly Note

1. Assemble the joint shaft using the SST, steel plate and a press.

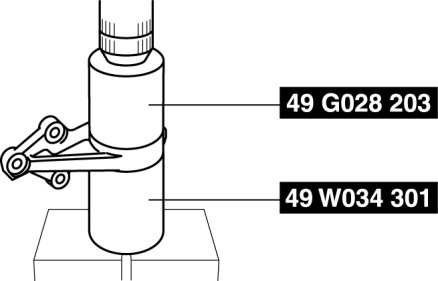

Dust Seal (RH) Assembly Note

1. Apply grease to a new dust seal (RH) lip.

2. Assemble a new dust seal (RH) using the SST and a press.
