Oil Seal (Manual Shaft) Replacement

OIL SEAL (MANUAL SHAFT) REPLACEMENT [AY6A-EL]

CAUTION:
- Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to allow water or foreign material on the connector when disconnecting.

1. Disconnect the negative battery cable.

2. Remove the fresh-air duct and air cleaner component as a single unit. Service and Repair

3. Remove the TCM. Service and Repair

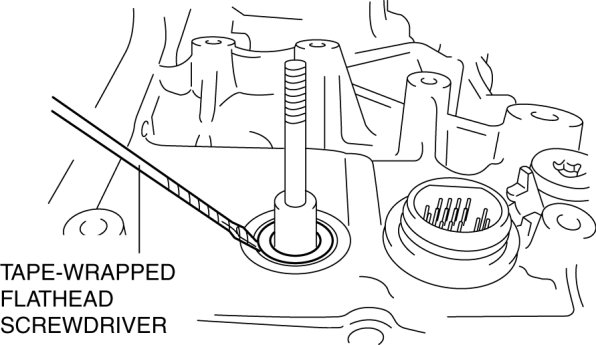

4. Remove and discard the oil seal using a tape-wrapped flathead screwdriver.






CAUTION:
- Do not damage the transaxle case.
- Do not damage the manual shaft.

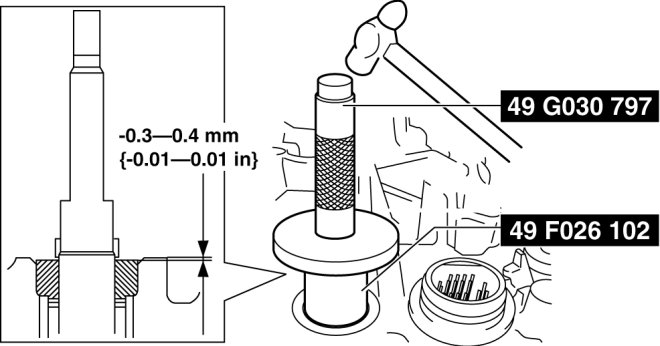

5. Using the SSTs and a hammer, tap a new oil seal so that the specified oil seal position is obtained.






CAUTION:
- Do not damage the oil seal.

6. Install the TCM. Service and Repair

7. Install the fresh-air duct and air cleaner component as a single unit. Service and Repair

8. Connect the negative battery cable.

9. Perform the "Neutral Position Learning". Programming and Relearning
