DIFFERENTIAL GEAR O-RING REPLACEMENT [AY6A-EL]

1. Remove the front splash shield. Service and Repair

2. Disconnect the drive shaft (LH) from the transaxle. Drive Shaft Removal/Installation

3. Disconnect the drive shaft (RH) from the joint shaft. Drive Shaft Removal/Installation

4. Remove the joint shaft. Joint Shaft Removal/Installation

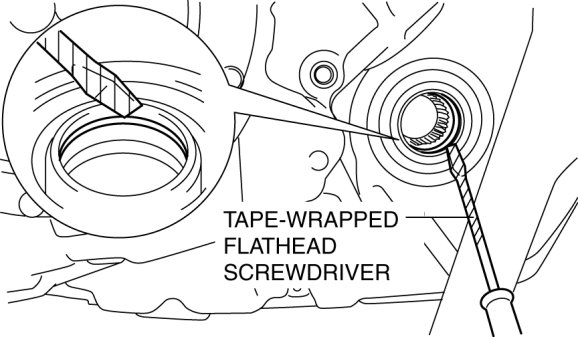

5. Remove and discard the O-rings using a tape-wrapped flathead screwdriver.






CAUTION:
- Do not damage the differential case.

6. Apply ATF to the new O-rings and install it to the differential case.

CAUTION:
- Do not damage the O-rings.
- Do not damage the differential case.

7. Install the joint shaft. Joint Shaft Removal/Installation

8. Install the drive shaft (RH) to the joint shaft. Drive Shaft Removal/Installation

9. Install the drive shaft (LH) to the transaxle. Drive Shaft Removal/Installation

10. Install the front splash shield. Service and Repair
