Intake Manifold

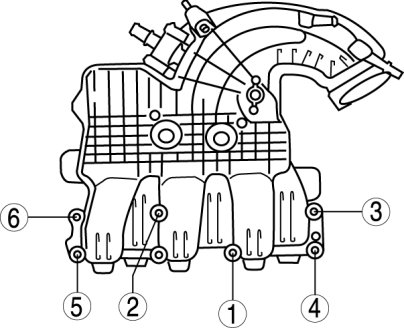

Intake ManifoldTighten the intake manifold installation bolts in the order shown.
Intake manifold installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
Dynamic Chamber
Tighten the dynamic chamber installation bolts in the order shown.
Dynamic chamber installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
