EVAPORATIVE CHAMBER INSPECTION [MZI 3.7 V6]

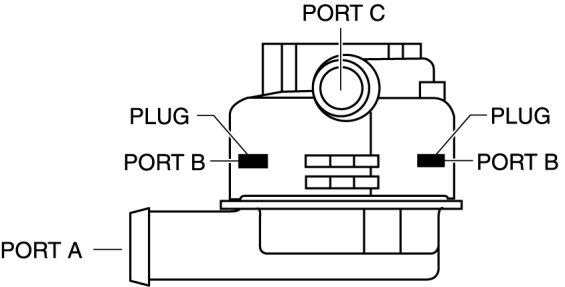

1. Remove the evaporative chamber. Removal and Replacement

2. Plug the port C.






3. Verify that there is air flow from port B when pressure is applied to port A.

- If there is no airflow, replace the evaporative chamber. Removal and Replacement

4. Remove the plug of port C.

5. Plug the port B.






6. Verify that there is air flow from port C when pressure is applied to port A.

- If there is no airflow, replace the evaporative chamber. Removal and Replacement

7. Remove the plug of port B.

8. Verify that there is air flow when vacuum is applied to port A.






- If there is no airflow, replace the evaporative chamber. Removal and Replacement
