Canister Vent Valve: Service and Repair

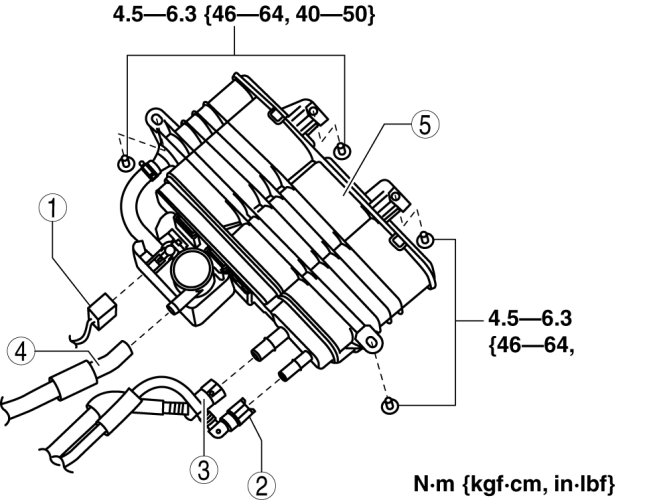

CHARCOAL CANISTER, CANISTER VENT (CV) SOLENOID VALVE, AIR FILTER COMPONENT REMOVAL/INSTALLATION [MZI 3.7 V6]

1. Disconnect the negative battery cable. Removal and Replacement

NOTE:
- Remove the charcoal canister, CV solenoid valve, and air filter as a single unit.

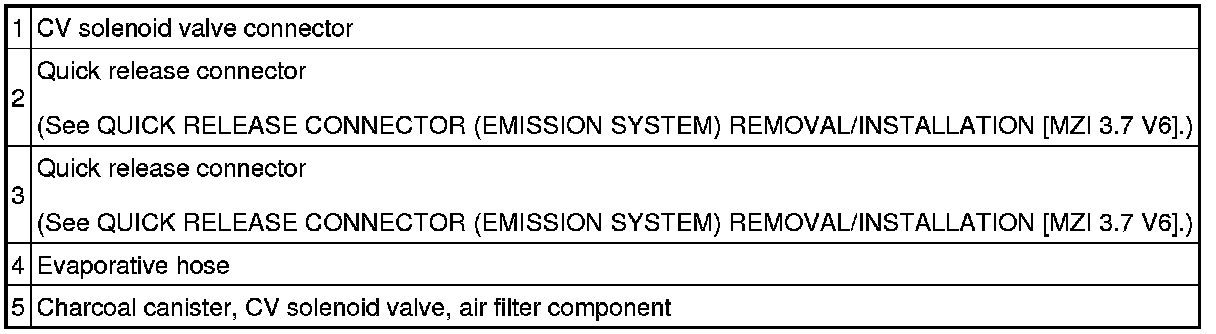

2. Remove in the order indicated in the table.









3. Install in the reverse order of removal.
