Removal and Replacement

CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [G66M-R]

CAUTION:
- If clutch fluid gets on a painted surface, it will cause the paint to peel. Be careful not to spill clutch fluid on the painted surfaces. Wash off any spilled clutch fluid with water immediately.

NOTE:
- If clutch system-related hydraulic parts are removed, supply clutch fluid, bleed air, and inspect for fluid leakage after the installation.

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the battery and battery tray. Removal and Replacement

3. Remove the cowl panel. Cowl Panel Removal/Installation

4. Remove the PCM and the PCM bracket. Service and Repair

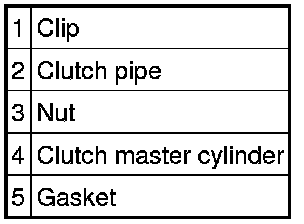

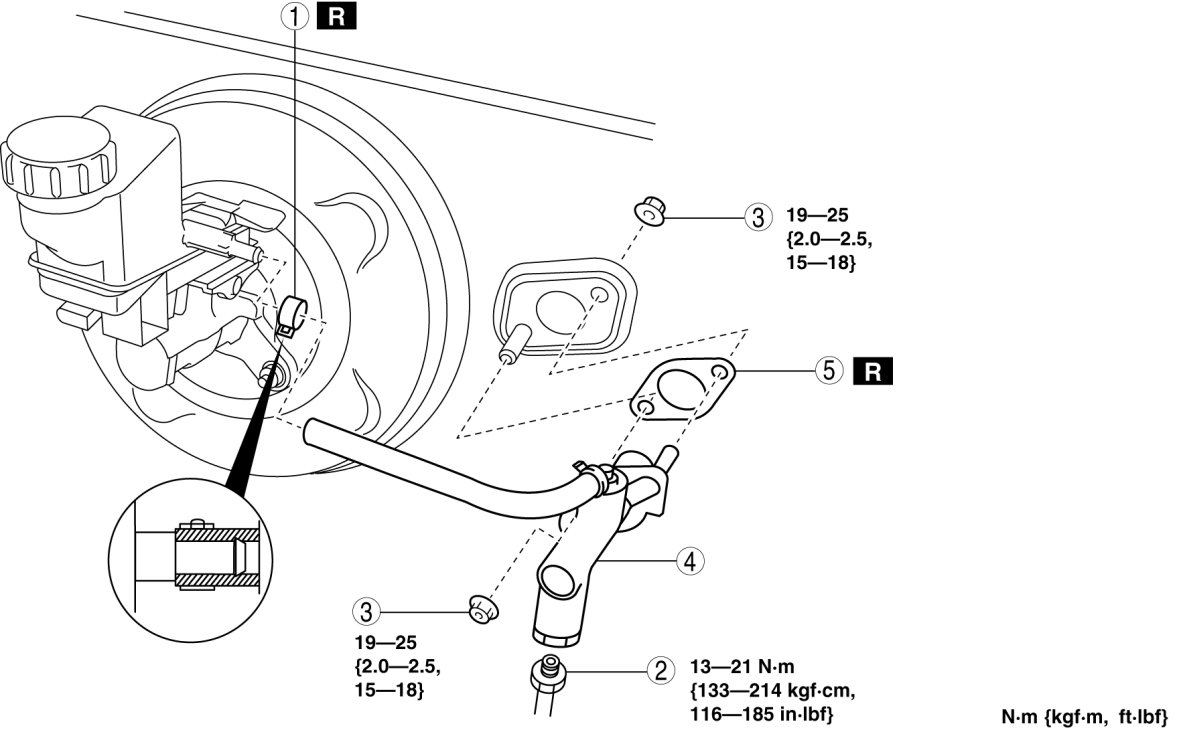

5. Remove in the order indicated in the table.

6. Plug the clutch pipe after removing it to avoid leakage.

7. Install in the reverse order of removal.
