Overhaul

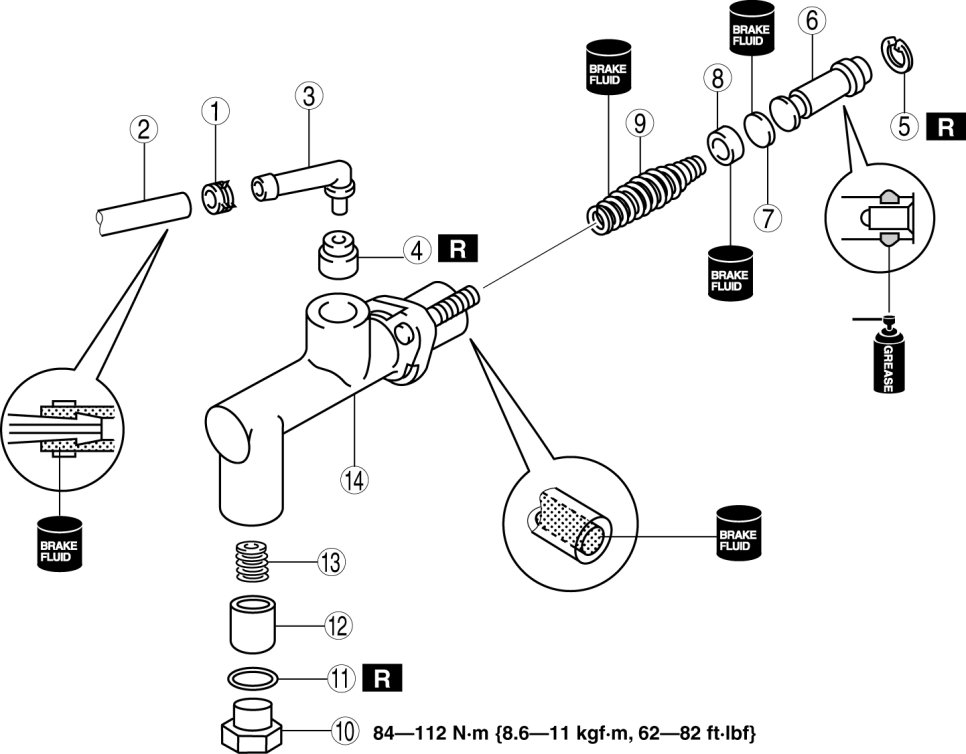

CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY [G66M-R]

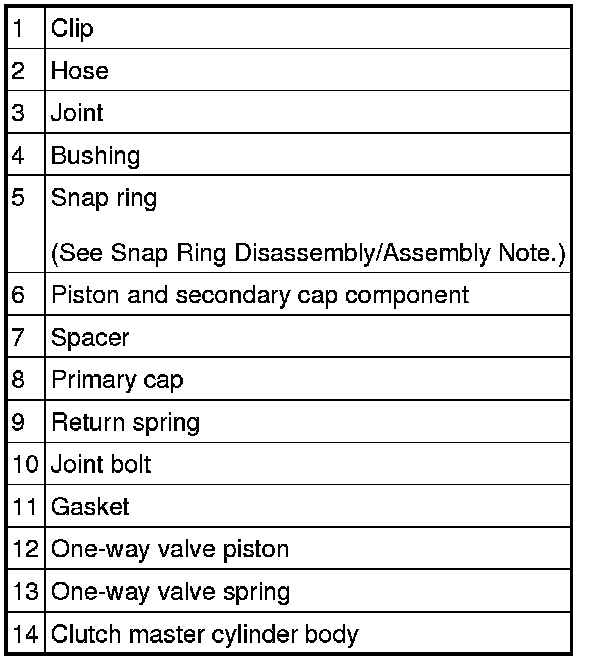

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.









Snap Ring Disassembly/Assembly Note

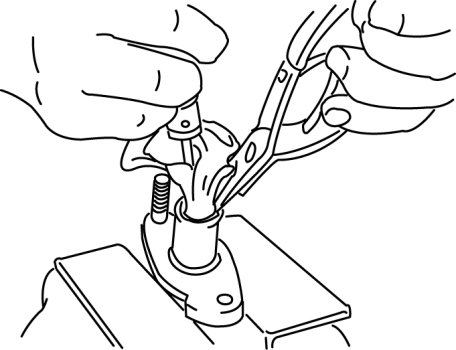

1. Hold the piston down using a cloth-wrapped pin punch.






- If disassembling, remove the snap ring; if assembling, install it.
