Rear Seat Belt Removal/Installation

REAR SEAT BELT REMOVAL/INSTALLATION

1. Remove the following parts:
a. Rear scuff plate Rear Scuff Plate Removal/Installation

b. Rear seat cushion Rear Seat Cushion Removal/Installation

c. Rear side seat back Rear Side Seat Back Removal/Installation

d. Tire house trim

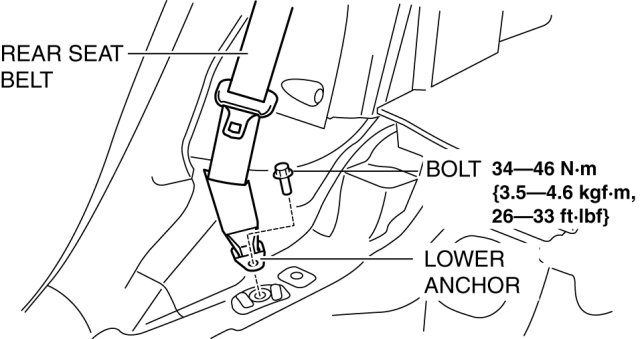

2. Remove the rear seat belt lower anchor installation bolt.






3. Remove the C-pillar trim. C-Pillar Trim Removal/Installation

4. Remove the rear package trim. Service and Repair

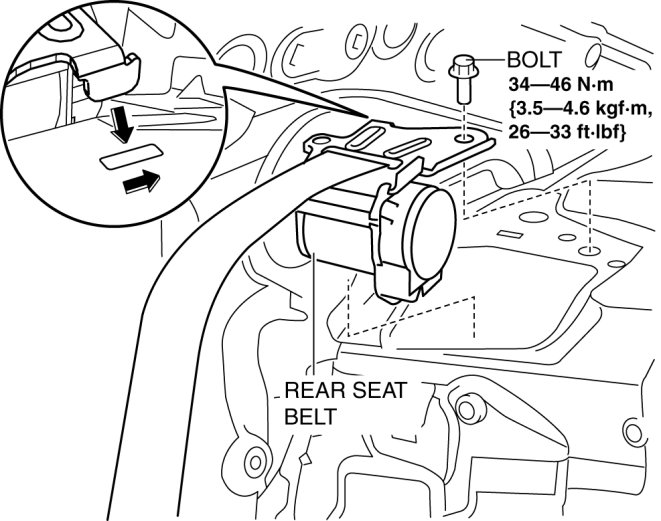

5. Remove the bolt.






6. Remove the rear seat belt.

7. Install in the reverse order of removal.
