Rear Buckle Removal/Installation

REAR BUCKLE REMOVAL/INSTALLATION

1. Remove the rear seat cushion. Rear Seat Cushion Removal/Installation

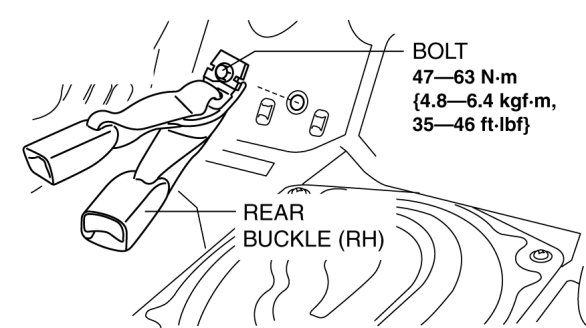

2. Remove the bolt.






3. Remove the rear buckle (RH).

4. Remove the rear buckle (LH). Rear Center Seat Belt Removal/Installation

5. Install in the reverse order of removal.
