System Wiring Diagram
System Wiring Diagram

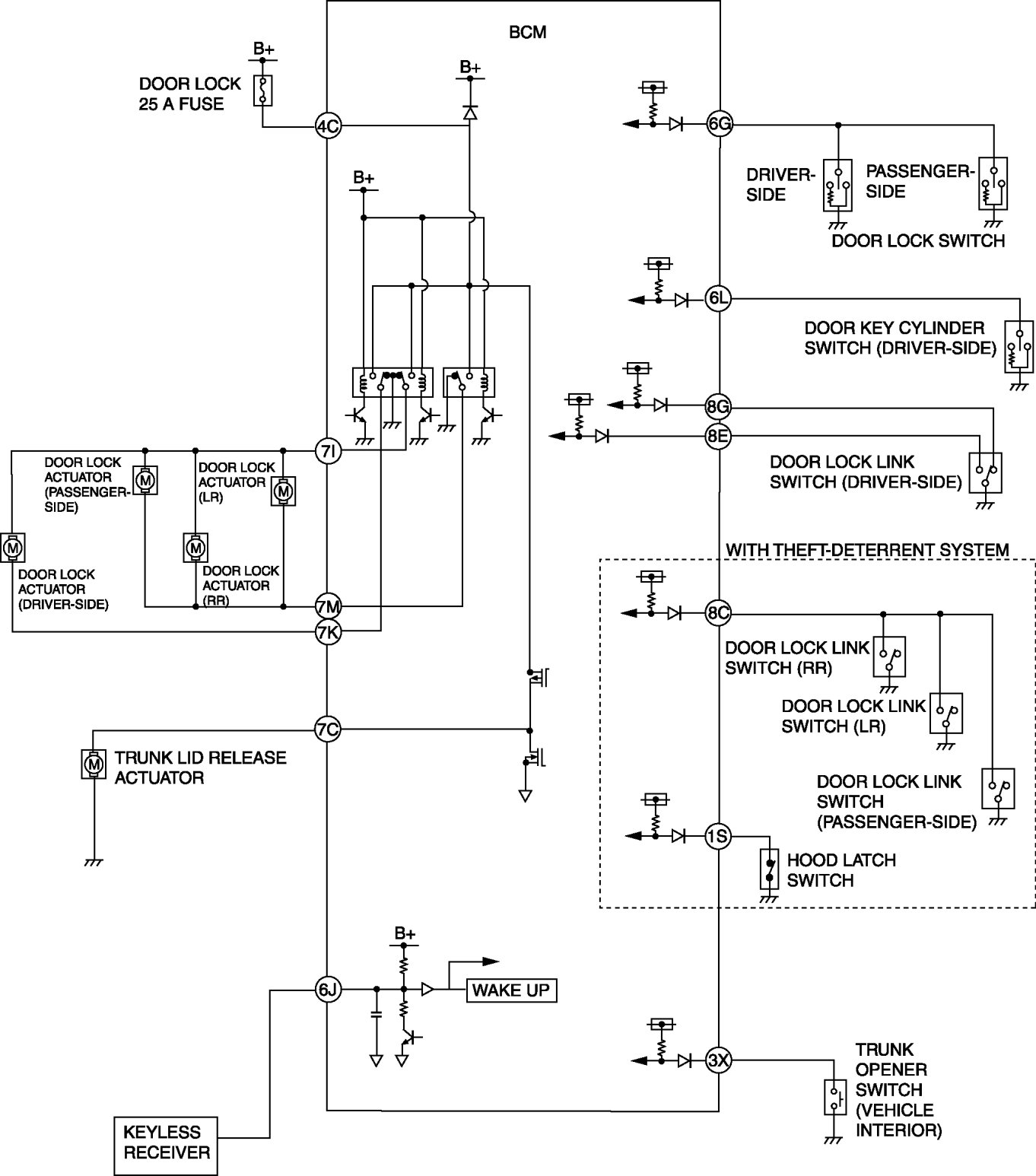

KEYLESS ENTRY SYSTEM WIRING DIAGRAM [KEYLESS ENTRY SYSTEM]
