Rear Door Limiter: Service and Repair

REAR DOOR CHECKER REMOVAL/INSTALLATION

1. Fully close the rear door glass.

2. Disconnect the negative battery cable.

3. Remove the rear door trim. Rear Door Trim Removal/Installation

4. Remove the rear door speaker. Rear Door Speaker Removal/Installation

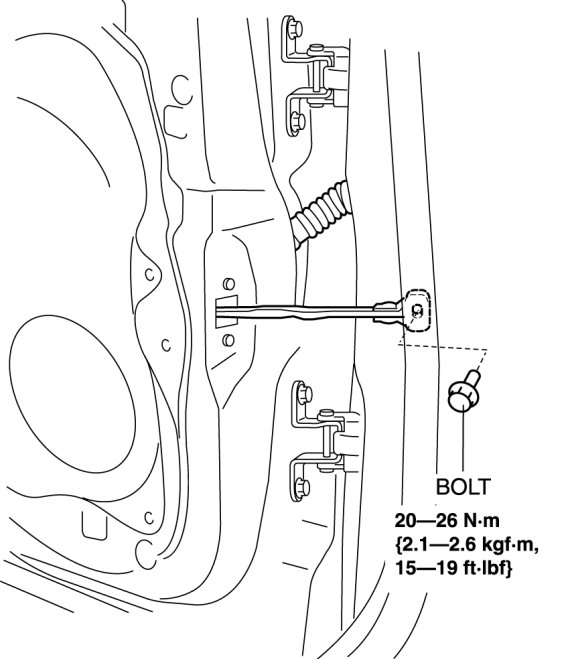

5. Remove the bolt.

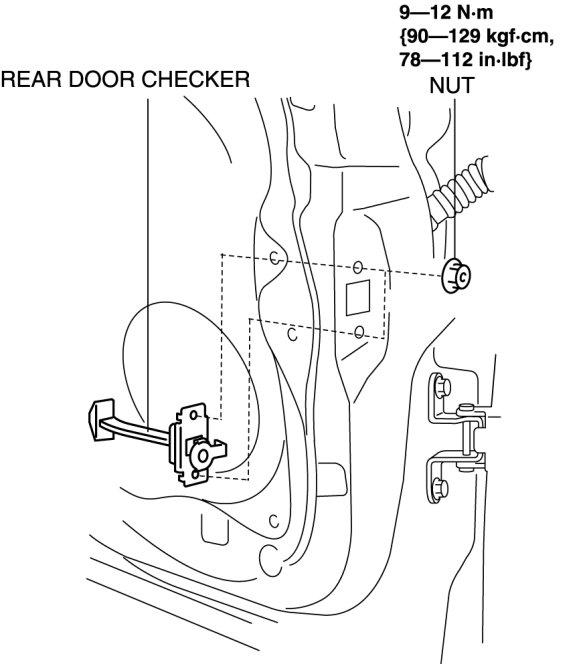

6. Remove the nuts.






7. Pull out the rear door checker from the rear speaker installation hole.

8. Install in the reverse order of removal.
