Rear Speaker Inspection

REAR SPEAKER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. High-mount brake light (See Service and Repair)

b. Rear seat cushion (See Rear Seat Cushion Removal/Installation)

c. Rear side seat back Rear Side Seat Back Removal/Installation

d. C-pillar trim C-Pillar Trim Removal/Installation

e. Rear package trim Service and Repair

f. Rear speaker Rear Speaker Removal/Installation

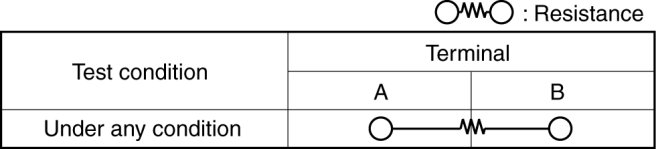

3. Verify the resistance between the rear speaker terminals.






- If not within the specification, replace the rear speaker.






Resistance
- 2.24-3.96 ohms
