Front Center Speaker Inspection

FRONT CENTER SPEAKER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the center panel upper. Center Panel Upper Removal/Installation

3. Remove the front center speaker. Front Center Speaker Removal/Installation

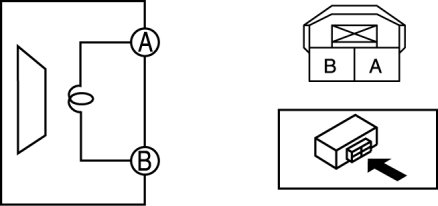

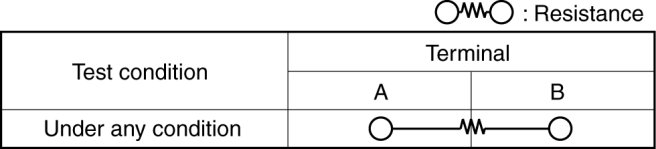

4. Verify the resistance between the front center speaker terminals.






- If not within the specification, replace the front center speaker.






Resistance
- 2.24-3.96 ohms
