JOINT SHAFT ASSEMBLY [ATX]

1. Assemble in the order indicated in the table.









Bearing Assembly Note

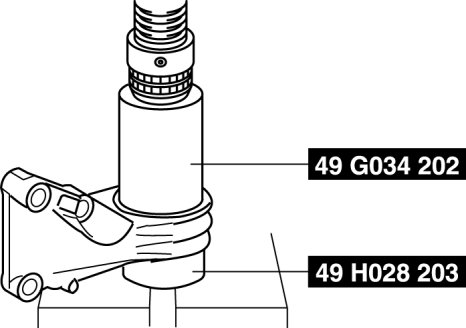

1. Install a new bearing using the SSTs.






Dust Seal (RH) Assembly Note

1. Apply grease to a new dust seal lip.

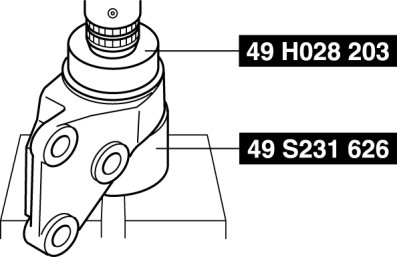

2. Install the dust seal (RH) using the SSTs.






Dust Seal (LH) Assembly Note

1. Apply grease to a new dust seal lip.

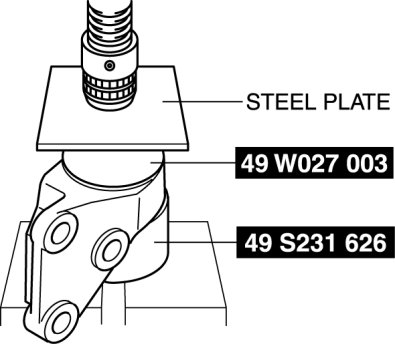

2. Install a new dust seal (LH) using the steel plate and the SSTs.






Joint Shaft Assembly Note

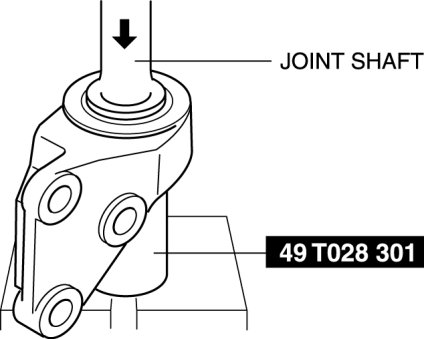

1. Press fit the joint shaft using the SST and a press.
