Input/Turbine Speed Sensor Removal/Installation

INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FS5A-EL]

CAUTION:
- Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.
- If the removed input/turbine speed sensor installation bolt is reused, it may cause ATF leakage. Always use a new bolt.
- A sealant coating is applied to the input/turbine speed sensor installation bolt to prevent ATF leakage from the installation bolt hole which passes through the component.
- When installing the input/turbine speed sensor, verify that there is no foreign material on the sensor such as metal shavings. If there is foreign material on the sensor part for the input/turbine speed sensor such as metal shavings, the sensor output will malfunction due to magnetic flux and result in deterioration in the control.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the air cleaner component. Service and Repair

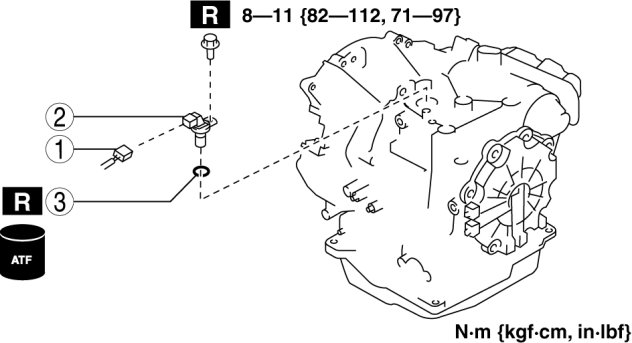

4. Remove in the order shown in the figure.

5. Install in the reverse order of removal.
