Interior - Vibration Noise From Center Ventilator Grille

Bulletin No: 09-002/12

Last Issued: 01/24/2012

Subject:
VIBRATION NOISE FROM CENTER VENTILATOR GRILLE

APPLICABLE MODEL(S)/VINS
2012 Mazda5

DESCRIPTION

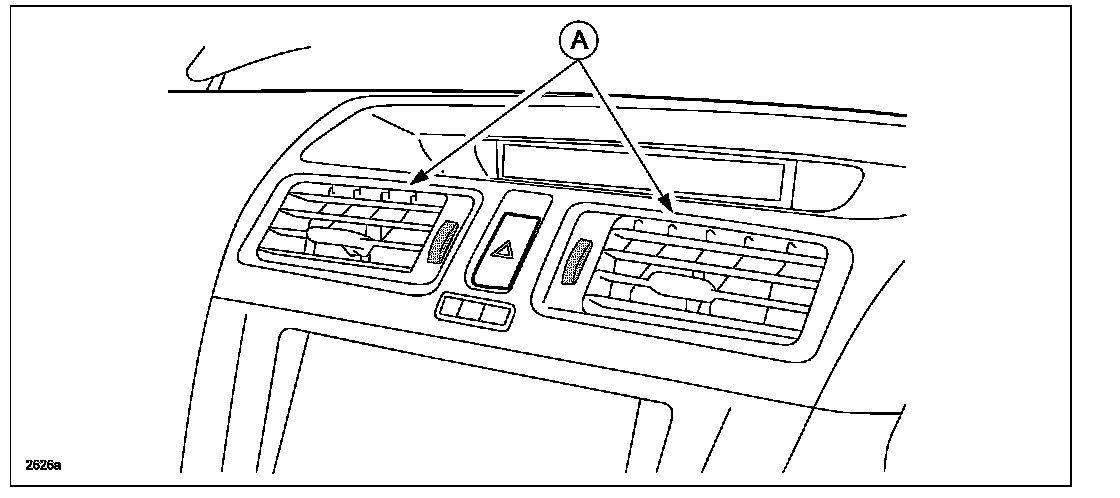

Some vehicles may exhibit a vibration noise from one or both of the center ventilator grilles (A) when a "maximum amount" of air is blowing through them. This is caused by a vibrating grille fin or seal rubber on the flap. To repair the problem, the ventilator grill is replaced with a modified one. Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

1.Verify customer concern.

2.Replace the ventilator grille that is vibrating with a modified one. Refer to MS3 online instructions or Workshop manual section 09-20 VENTILATOR GRILLE REMOVAL/INSTALLATION.

3.Verify repair.





PART(S) INFORMATION

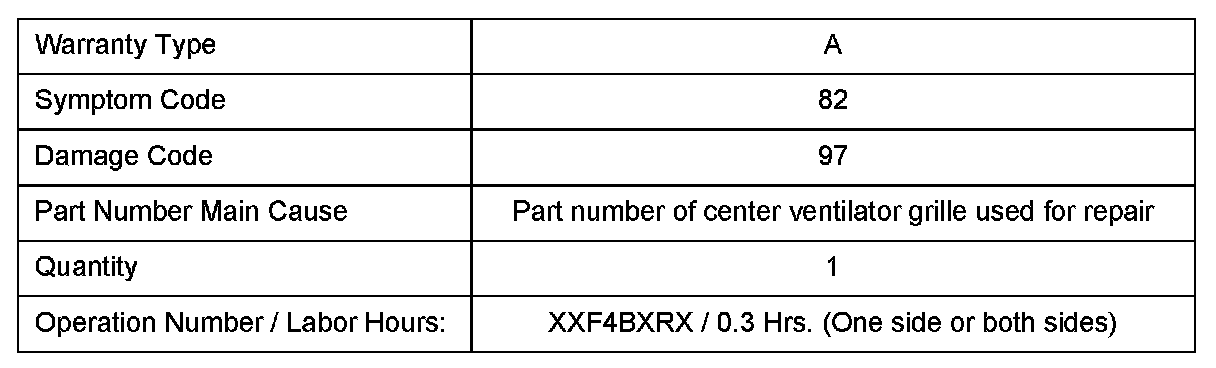

WARRANTY INFORMATION

NOTE:
^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.

^ This repair will be covered under Mazda's New Vehicle Limited Warranty term.

^ Additional diagnostic time cannot be claimed for this repair.
