Rear Suspension - Lower Arm Removal/Installation

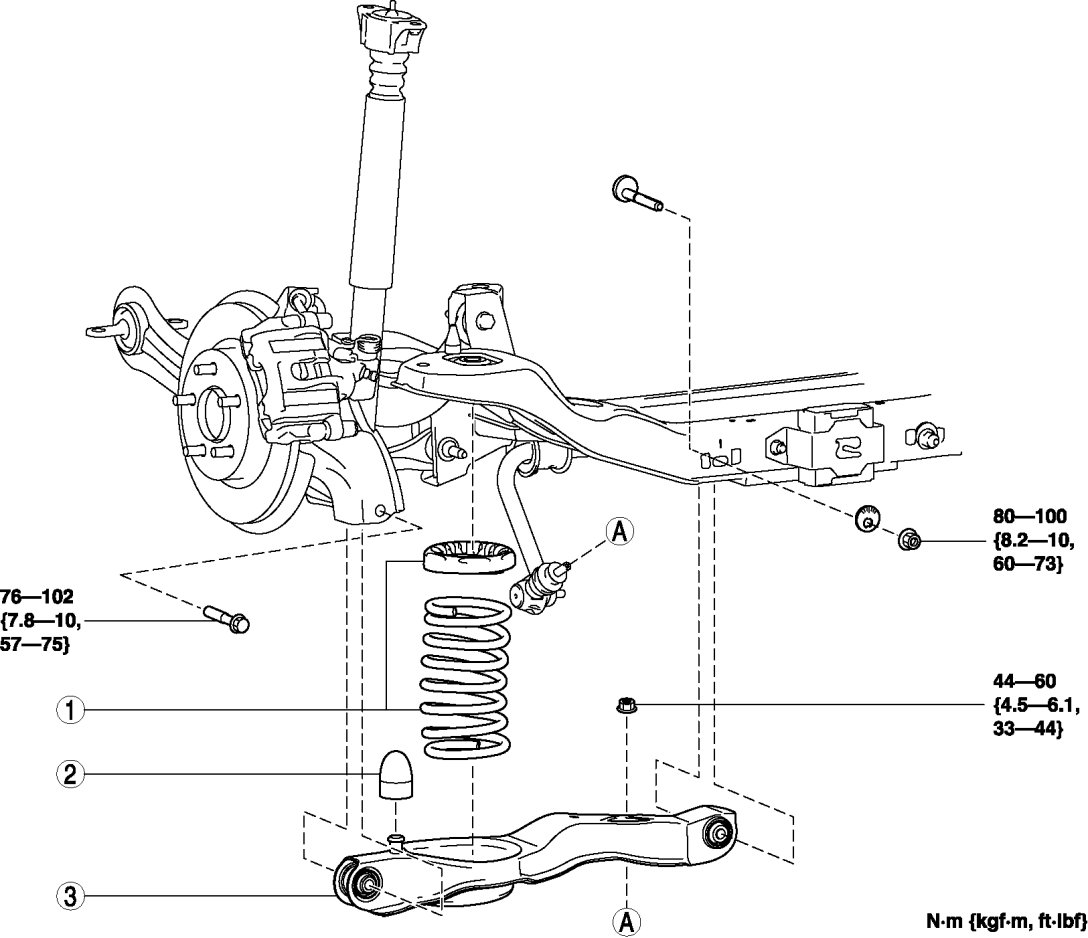

REAR LOWER ARM REMOVAL/INSTALLATION

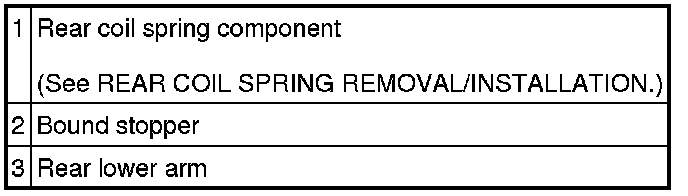

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Inspect the wheel alignment and adjust it if necessary. Rear Wheel Alignment
