Standard Deployment Control System
Standard Deployment Control System

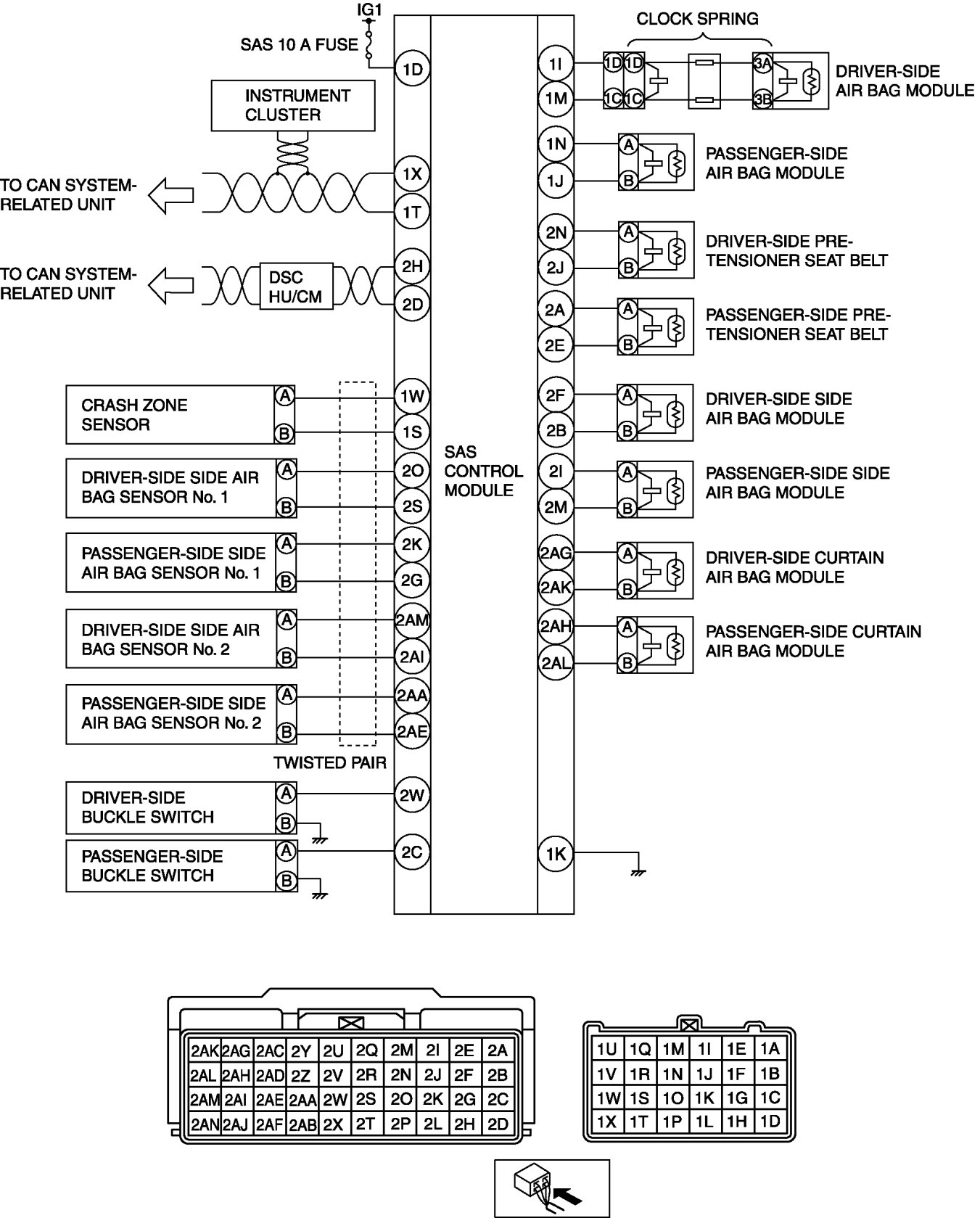

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [STANDARD DEPLOYMENT CONTROL SYSTEM]
