Canister Vent Valve: Service and Repair

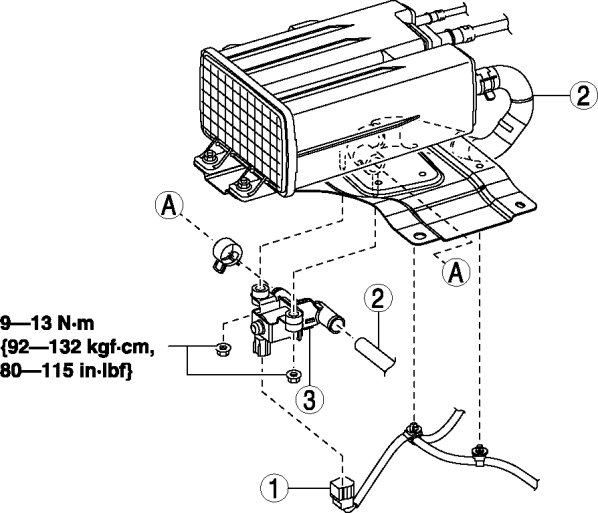

CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.5]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the charcoal canister protector. Service and Repair

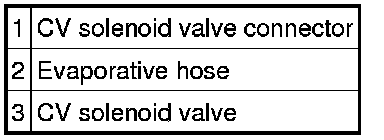

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
