CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [MZR 2.5]

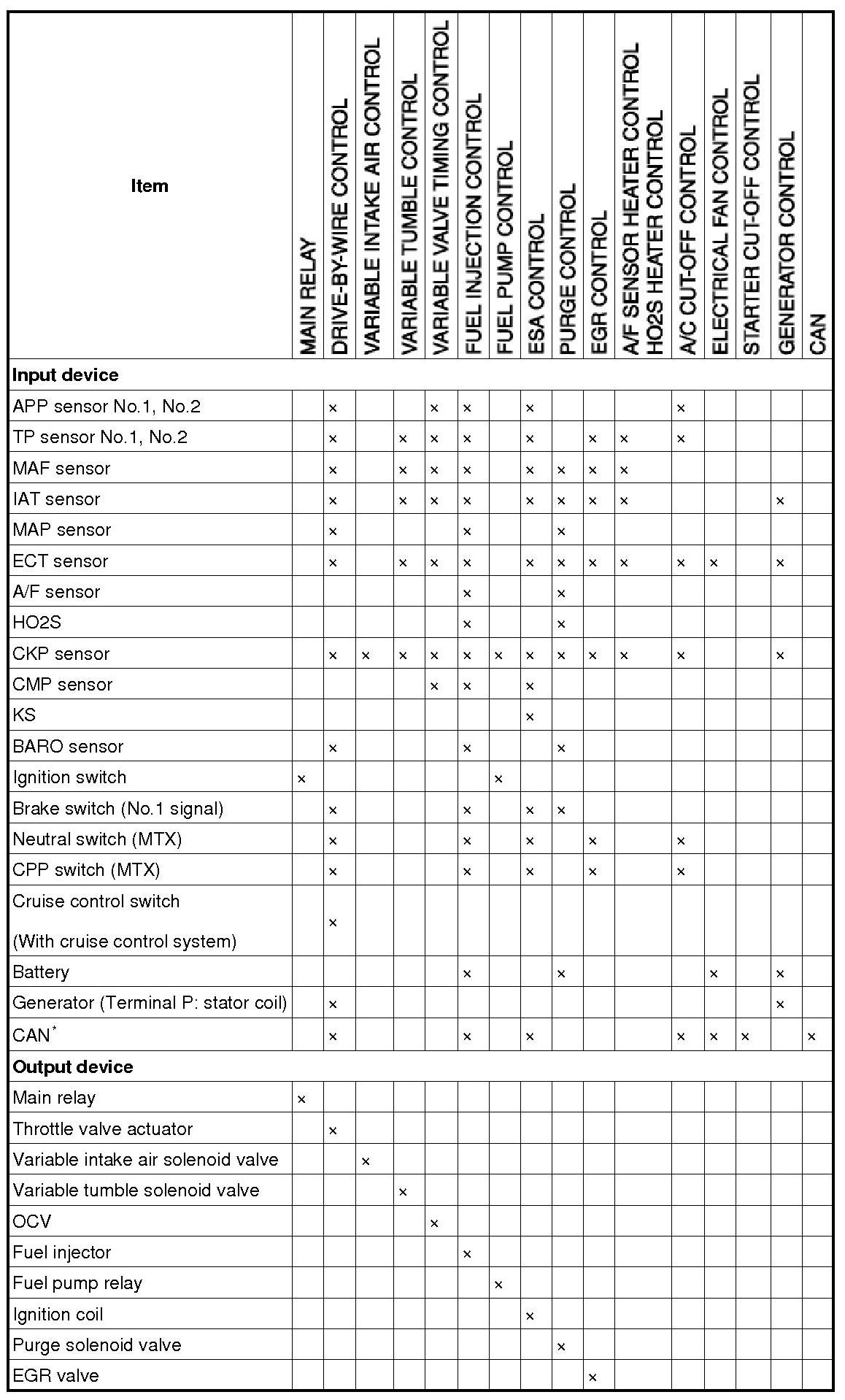

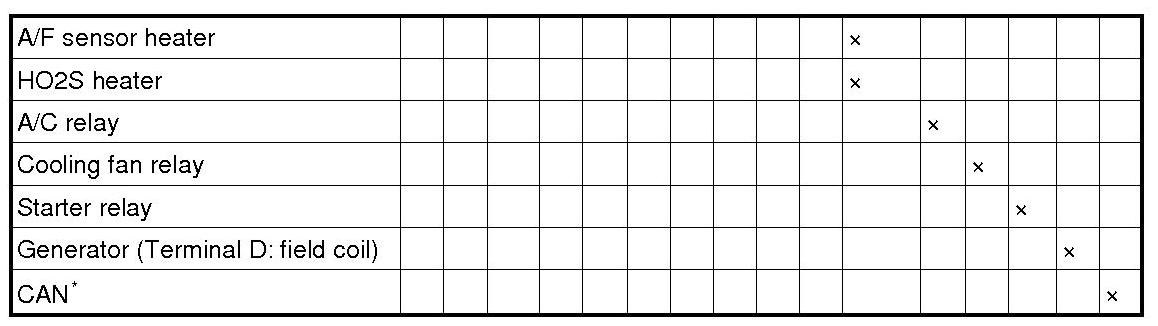

- Each control system and their related input and output parts are as follows.

x: Applicable









*
For details on the CAN-related parts, refer to the block diagram for each control item.
