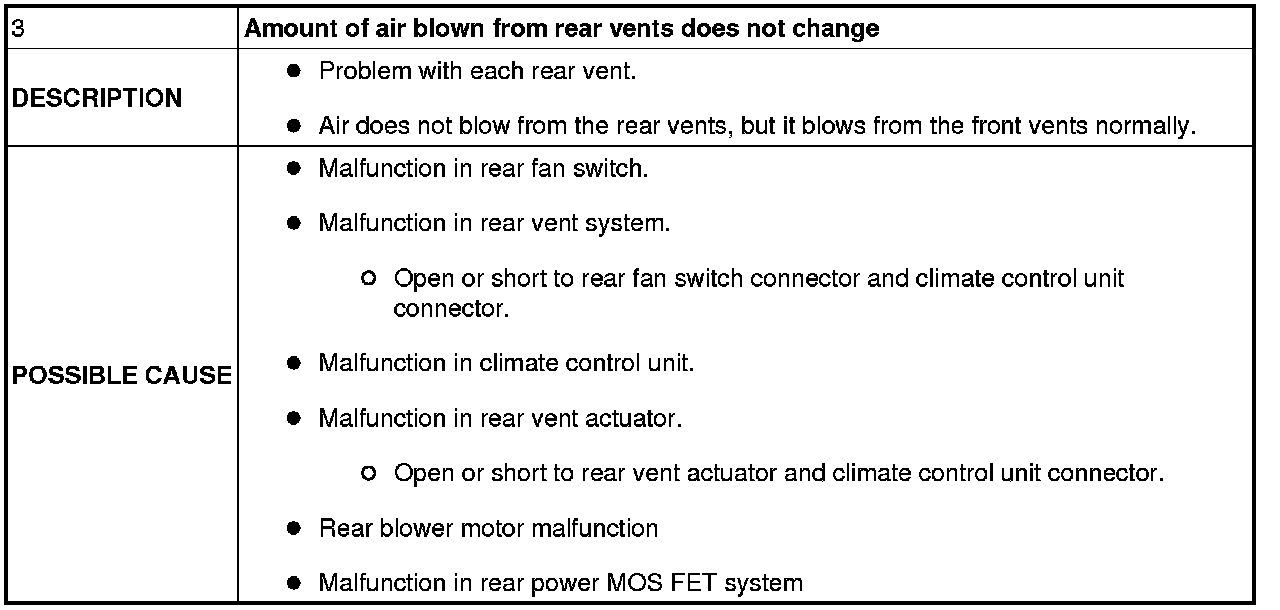

No. 3 Amount Of Air Blown From Rear Vents Does Not Change

NO.3 AMOUNT OF AIR BLOWN FROM REAR VENTS DOES NOT CHANGE [FULL-AUTO AIR CONDITIONER]





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, inspect to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.

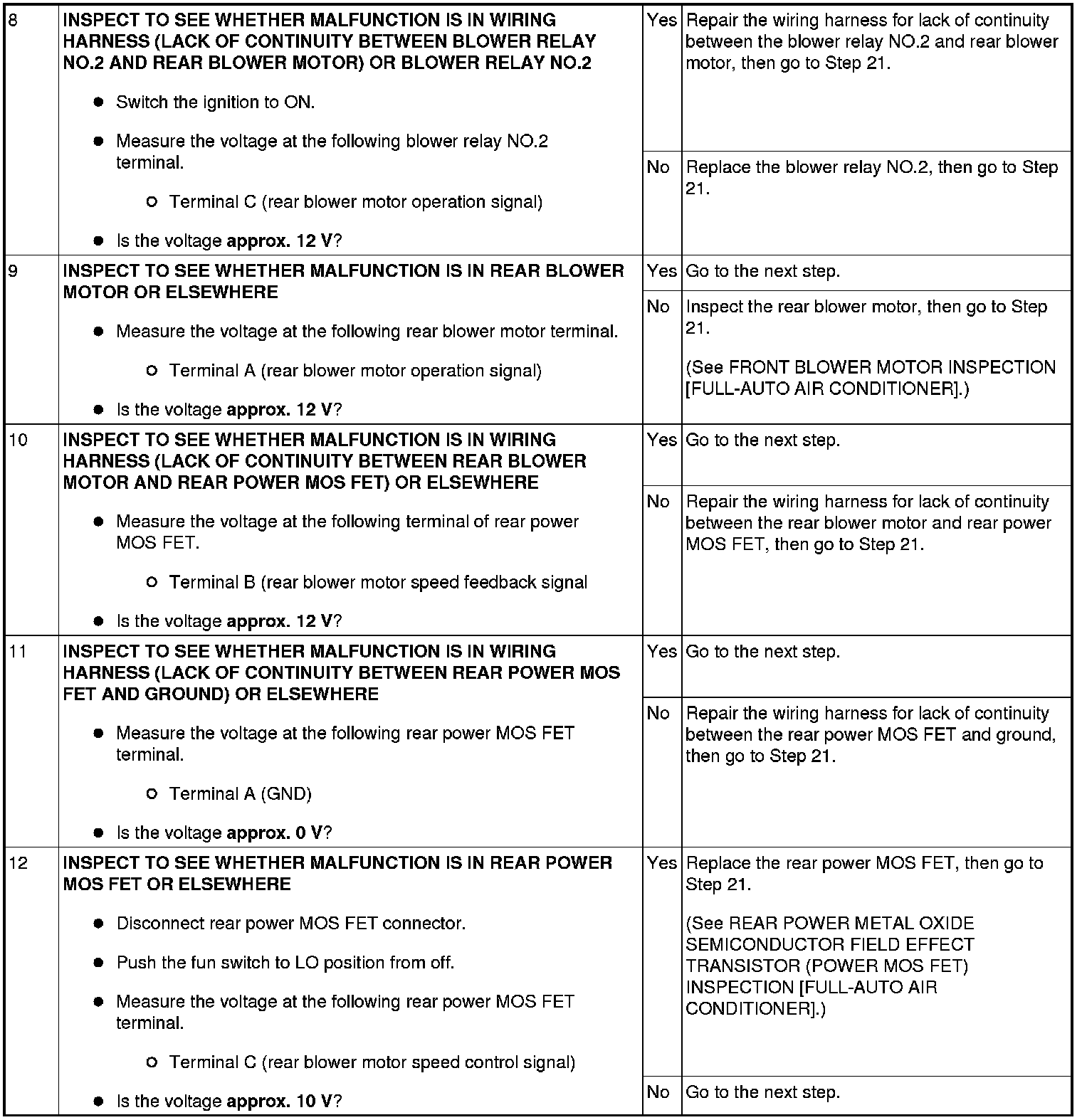

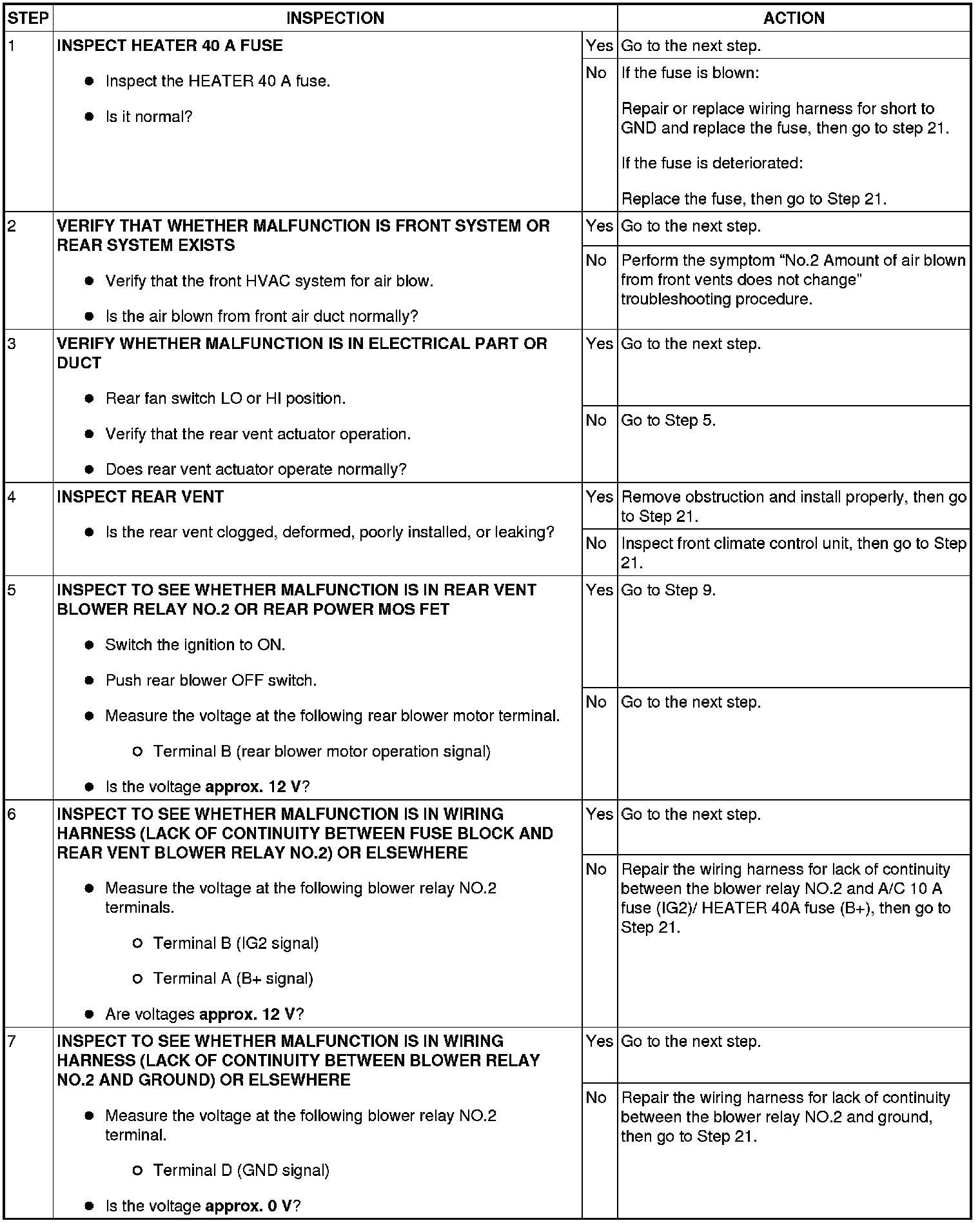

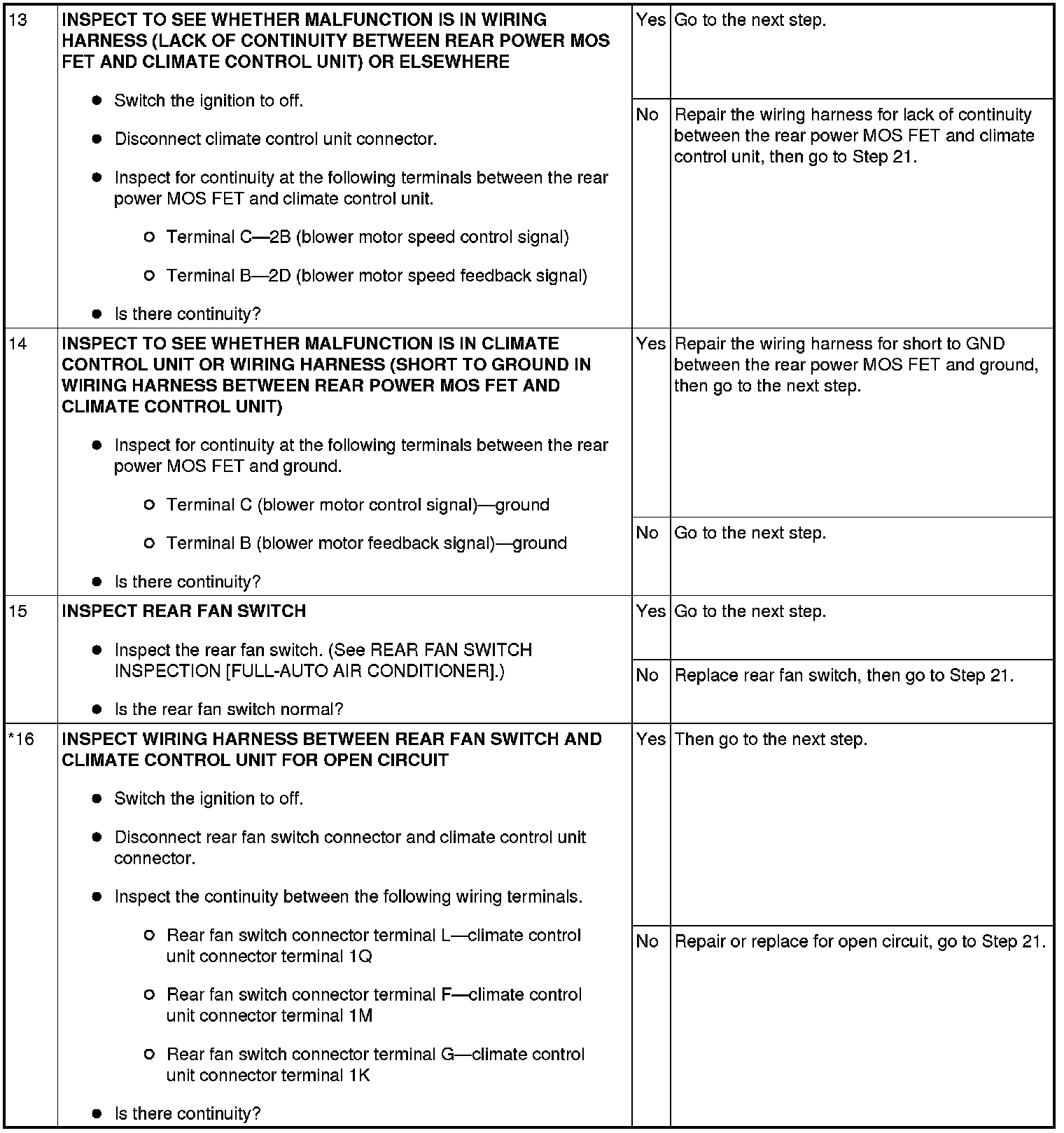

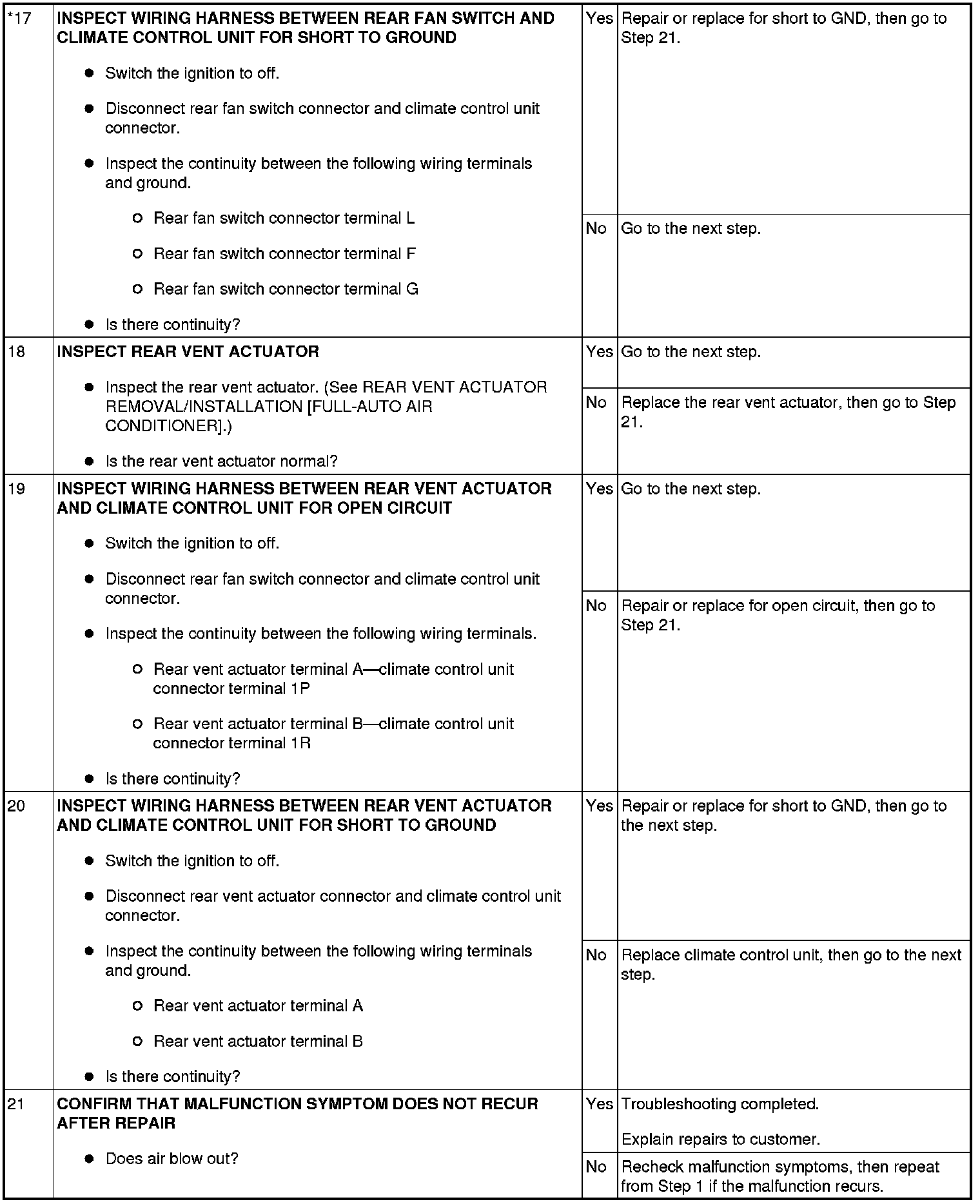

Diagnostic procedure
