A/C Operation Check Mode Table
A/C Operation Check Mode Table

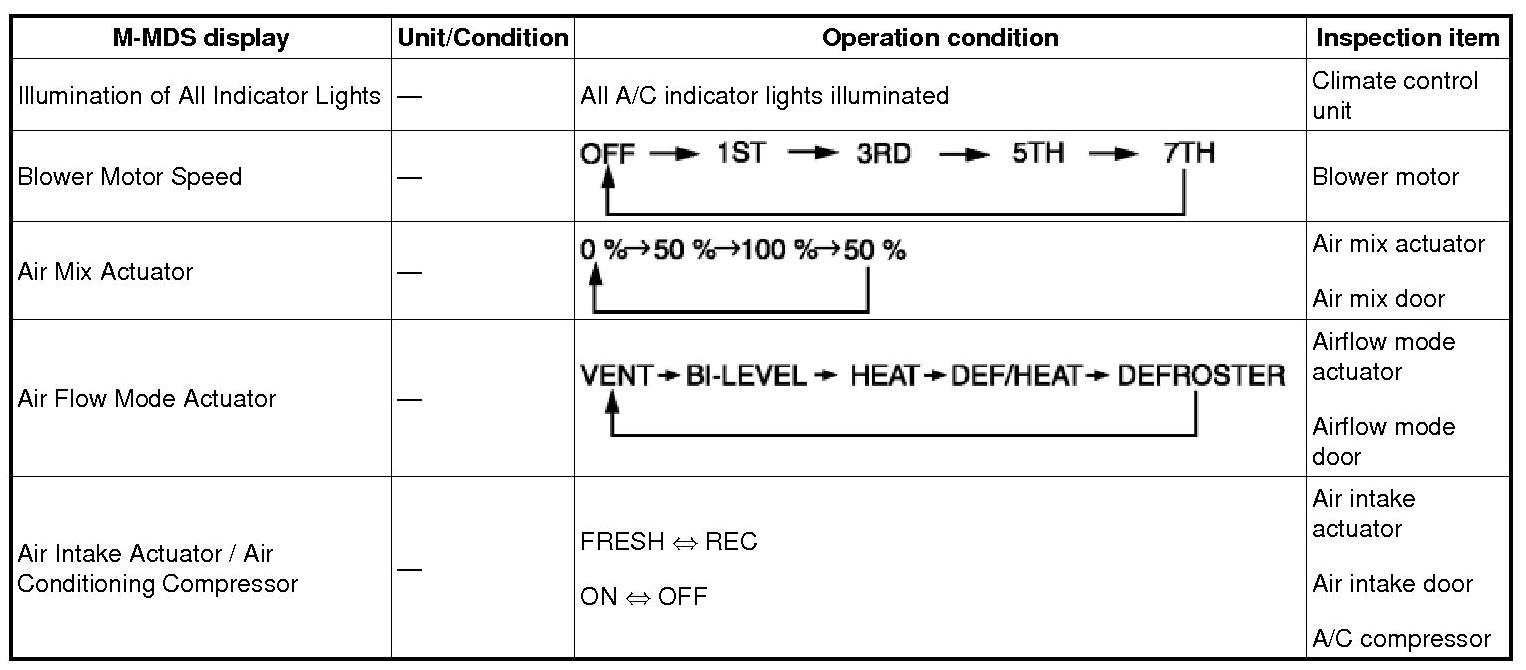

A/C OPERATION CHECK MODE TABLE [FULL-AUTO AIR CONDITIONER]
