Compressor Clutch: Testing and Inspection

MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER]

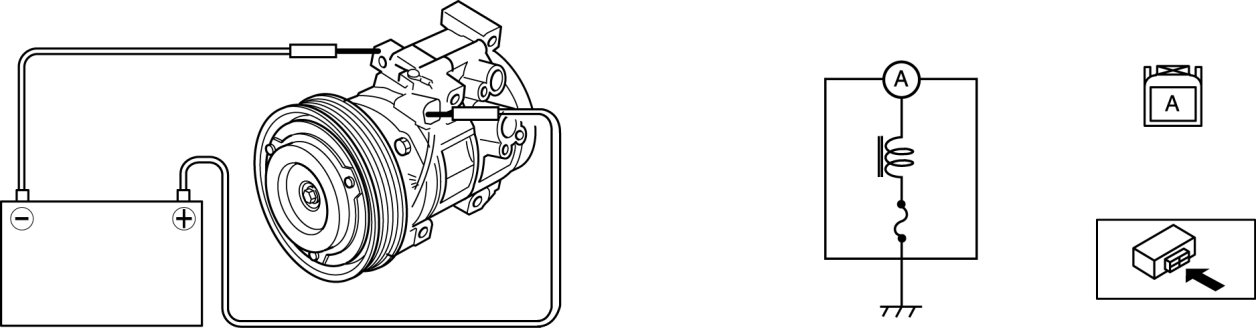

1. Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.






2. Verify that the magnetic clutch operates.

- If there is any malfunction, replace the magnetic clutch. Service and Repair
