Rear Heat Duct Removal/Installation

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front seat Front Seat Removal/Installation

b. Front scuff plate Front Scuff Plate Removal/Installation

c. Front side trim Front Side Trim Removal/Installation

d. Side wall Side Wall Removal/Installation

e. Center console box Center Console Box Removal/Installation

f. Console panel Console Panel Removal/Installation

g. Center console Center Console Removal/Installation

h. Shift lever knob (MTX) Service and Repair

i. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

j. Shift panel Shift Panel Removal/Installation

k. Front console Front Console Removal/Installation

l. Shift lever component and bracket (MTX) Service and Repair

m. Selector lever component and bracket (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

n. Joint cover Service and Repair

o. Rear scuff plate Rear Scuff Plate Removal/Installation

3. Turn the floor covering over.

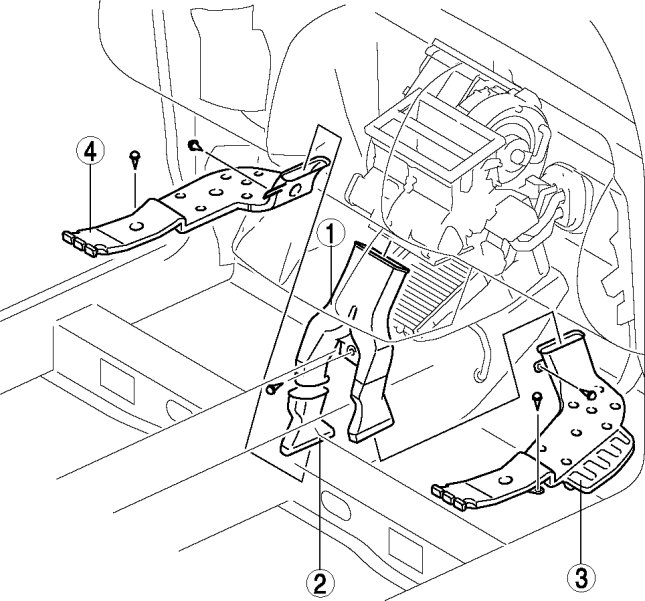

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
