Airflow Mode Actuator

AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Column cover Service and Repair

b. Front heat duct (driver-side) Front Heat Duct Removal/Installation

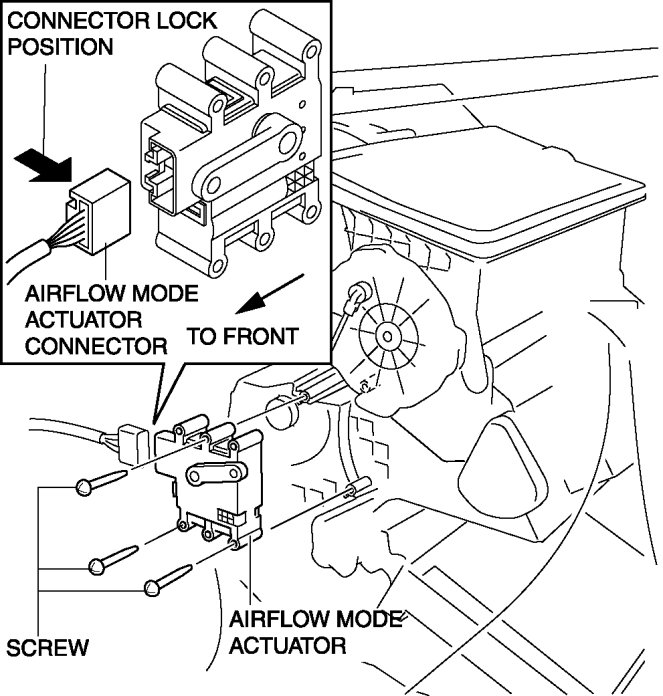

3. Remove the screws.

4. Disconnect the airflow mode actuator connector.






5. Remove the airflow mode actuator.

6. Install in the reverse order of removal.
