Air Mix Actuator

AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (passenger-side) Front Scuff Plate Removal/Installation

b. Front side trim (passenger-side) Front Side Trim Removal/Installation

c. Side wall Side Wall Removal/Installation

d. Center console box Center Console Box Removal/Installation

e. Console panel Console Panel Removal/Installation

f. Center console Center Console Removal/Installation

g. Shift lever knob (MTX) Service and Repair

h. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

i. Shift panel Shift Panel Removal/Installation

j. Front console Front Console Removal/Installation

k. Side panel Side Panel Removal/Installation

l. Glove compartment Service and Repair

m. Dashboard under cover Dashboard Under Cover Removal/Installation

n. Lower panel (passenger-side) Lower Panel Removal/Installation

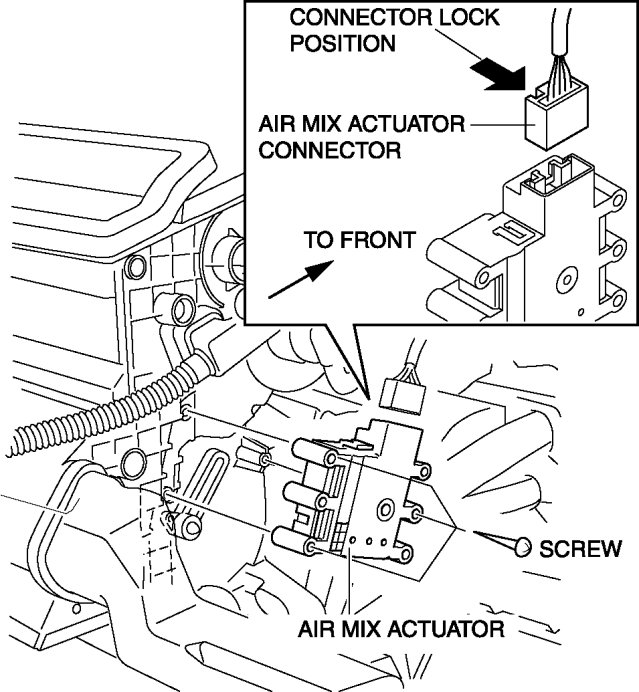

3. Disconnect the air mix actuator connector.






4. Remove the screws.

5. Remove the air mix actuator.

6. Install in the reverse order of removal.
