Air Intake Actuator

AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]



1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (passenger-side) Front Scuff Plate Removal/Installation

b. Front side trim (passenger-side) Front Side Trim Removal/Installation

c. Side wall Side Wall Removal/Installation

d. Center console box Center Console Box Removal/Installation

e. Console panel Console Panel Removal/Installation

f. Center console Center Console Removal/Installation

g. Shift lever knob (MTX) Service and Repair

h. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

i. Shift panel Shift Panel Removal/Installation

j. Front console Front Console Removal/Installation

k. Side panel Side Panel Removal/Installation

l. Glove compartment Service and Repair

m. Dashboard under cover Dashboard Under Cover Removal/Installation

n. Lower panel (passenger-side) Lower Panel Removal/Installation

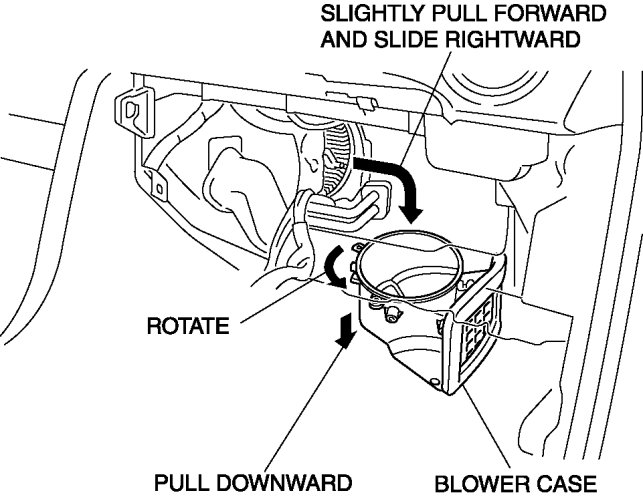

3. Remove the screws shown in the figure and slide the front blower case.






CAUTION:
- Slide the front blower case while pressing the dashboard insulator, otherwise the front blower case could be damaged.

4. Disconnect the air intake actuator connector.

5. Remove the front blower case shown in the figure.

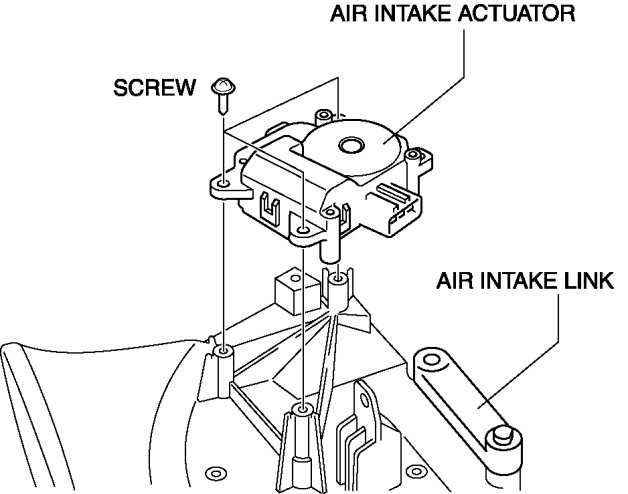

6. Remove the screws.






7. Remove the air intake actuator.

8. Remove the air intake link.

9. Install in the reverse order of removal.
