Home
>>
Mazda
>>
2012
>>
5 L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

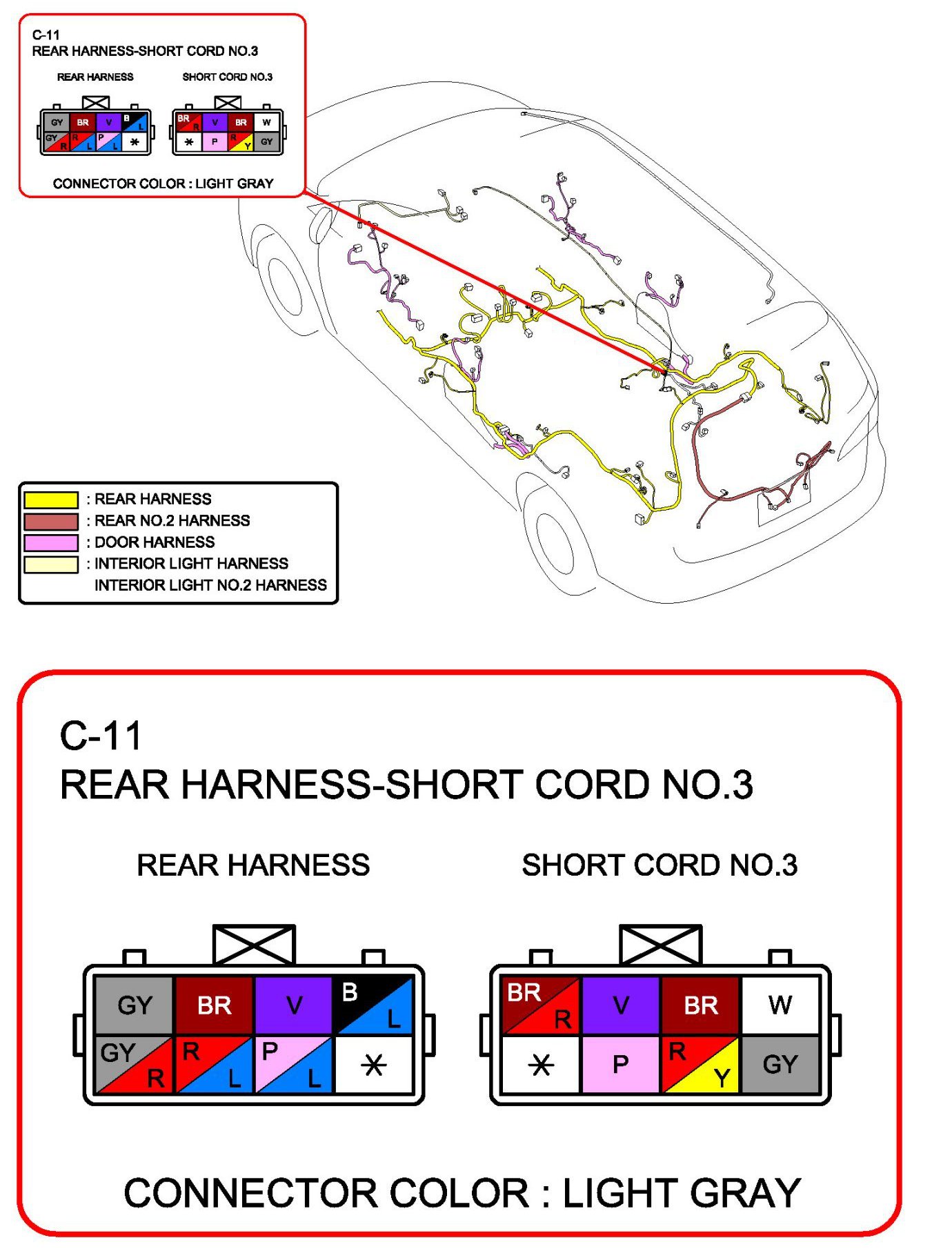

C-11 (Rear Harness-Short Cord No.3)
C-11 (Rear Harness-Short Cord No.3)
