Hydraulic Control Assembly - Antilock Brakes: Service and Repair

DSC HU/CM REMOVAL/INSTALLATION

CAUTION:
- The internal parts of the DSC HU/CM could be damaged if dropped. Be careful not to drop the DSC HU/CM. Replace the DSC HU/CM if it is subjected to an impact.
- If the DSC HU/CM configuration is not completed, it could result in an unexpected accident due to the DSC being inoperative. If the DSC HU/CM is replaced, always use the automatic configuration function so that the DSC operation conditions are correct.
- If the DSC sensor initialization procedure is not completed, the DSC will not operate properly and it might cause an unexpected accident. Therefore, after replacing or removing the DSC HU/CM, make sure to perform the DSC sensor initialization procedure to insure proper DSC operation.

NOTE:
- When the ignition is switched to ON or the engine is started after the DSC HU/CM have been replaced, the DSC CM reads data from the instrument cluster via CAN communication to perform automatic configuration.

1. Remove the battery and battery tray. Removal and Replacement

2. For MTX vehicles, disconnect the reserve hose (No.2 brake fluid reserve tank side). Service and Repair

3. Remove the No.1 brake fluid reserve tank installation nuts. Service and Repair

4. Set the No.1 brake fluid reserve tank out of the way.

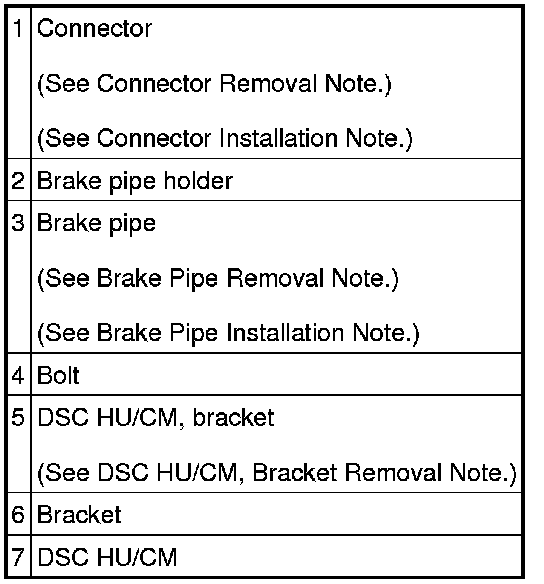

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

7. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. Service and Repair

8. Switch the ignition to ON or start the engine, and maintain this condition for approx. 30 s to allow the DSC HU/CM automatic configuration to be performed.

9. Perform the DSC sensor initialization procedures. Programming and Relearning

10. Clear the DTCs from the memory. On-Board Diagnosis









Connector Removal Note

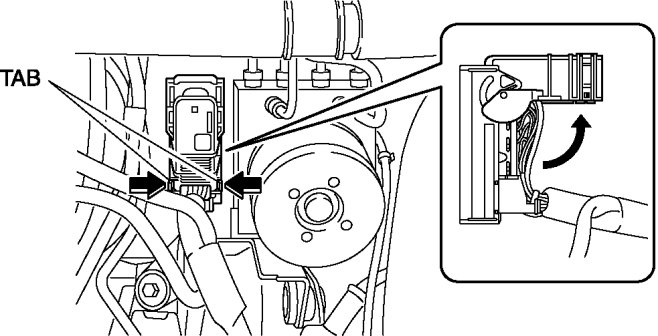

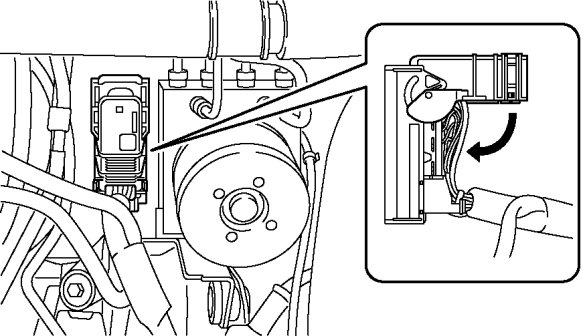

1. Pull the connector cover up in the direction of the arrow while pressing the tab of the connector cover.






2. Pull the connector toward the vehicle front and remove it.

Brake Pipe Removal Note

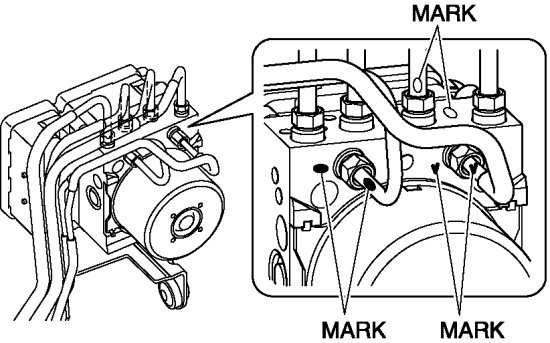

1. Place an alignment mark on the brake pipe and DSC HU/CM.






2. Apply protective tape to the connector to prevent brake fluid from entering.

3. Remove the brake pipe.

DSC HU/CM, Bracket Removal Note

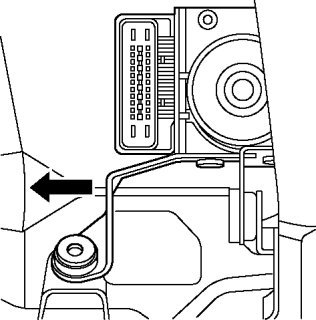

1. As shown in the figure, move the bracket in the direction of the arrow and remove the DSC HU/CM and bracket from the body.






Brake Pipe Installation Note

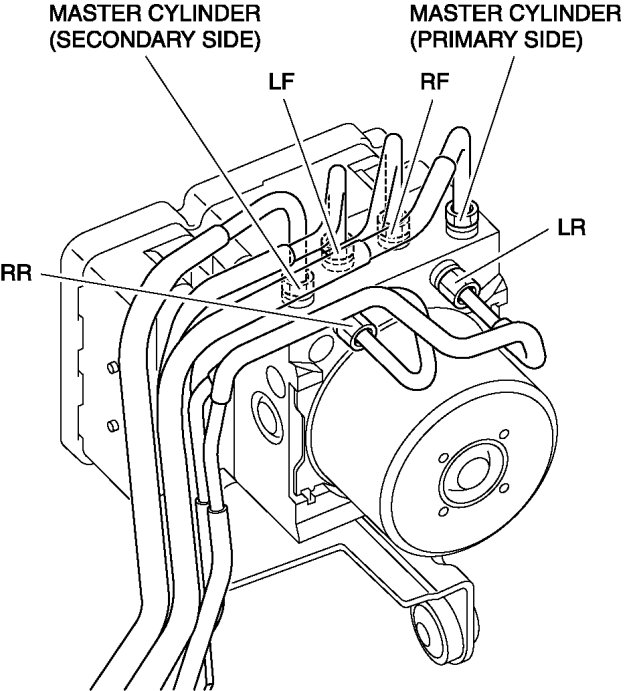

1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.






Connector Installation Note

1. After connecting the connector, verify that the connector cover is completely pushed in.
