Spoiler: Service and Repair

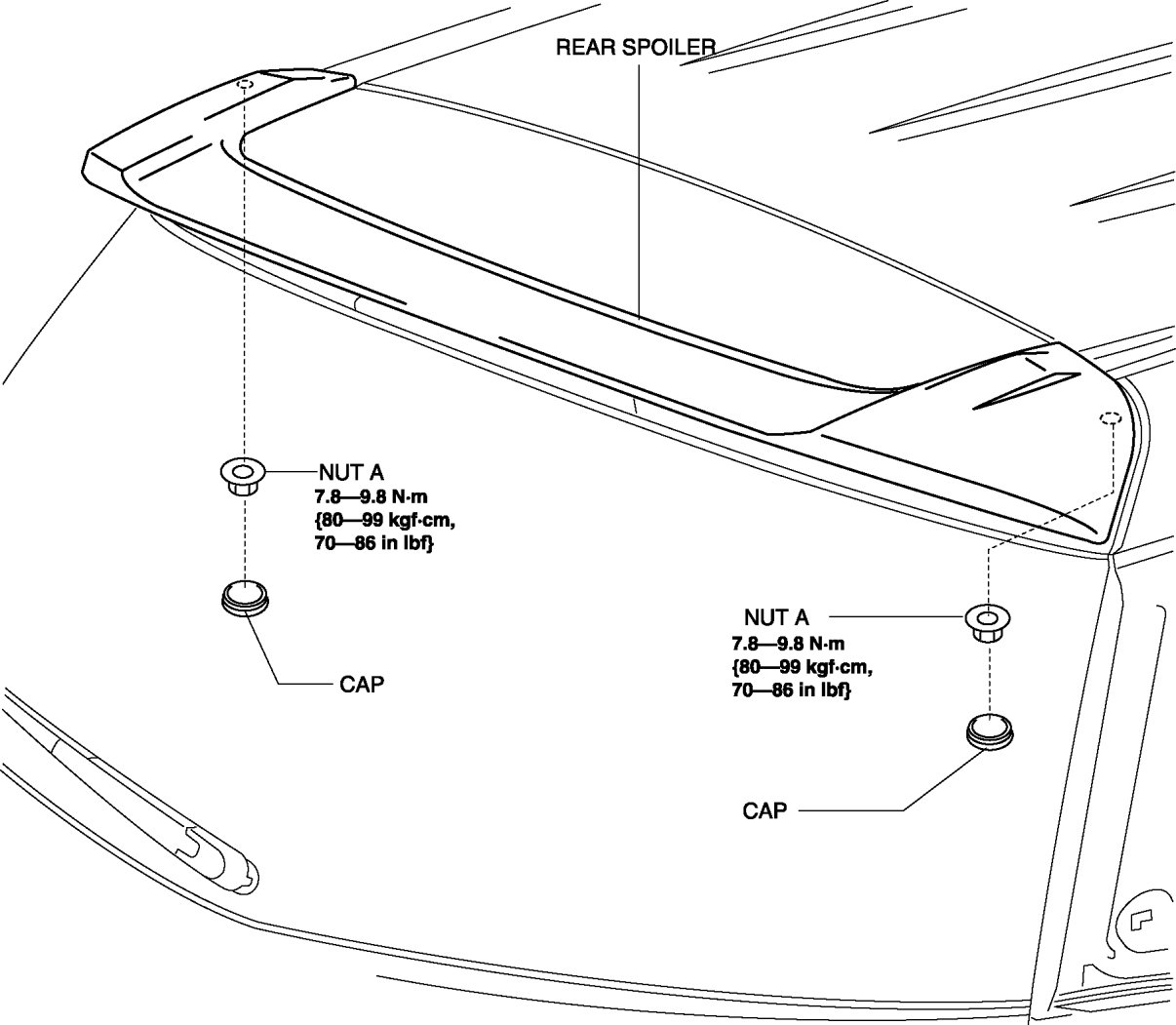

REAR SPOILER REMOVAL/INSTALLATION

1. Remove the liftgate upper trim.

2. Remove the caps.

3. Remove the nuts A.

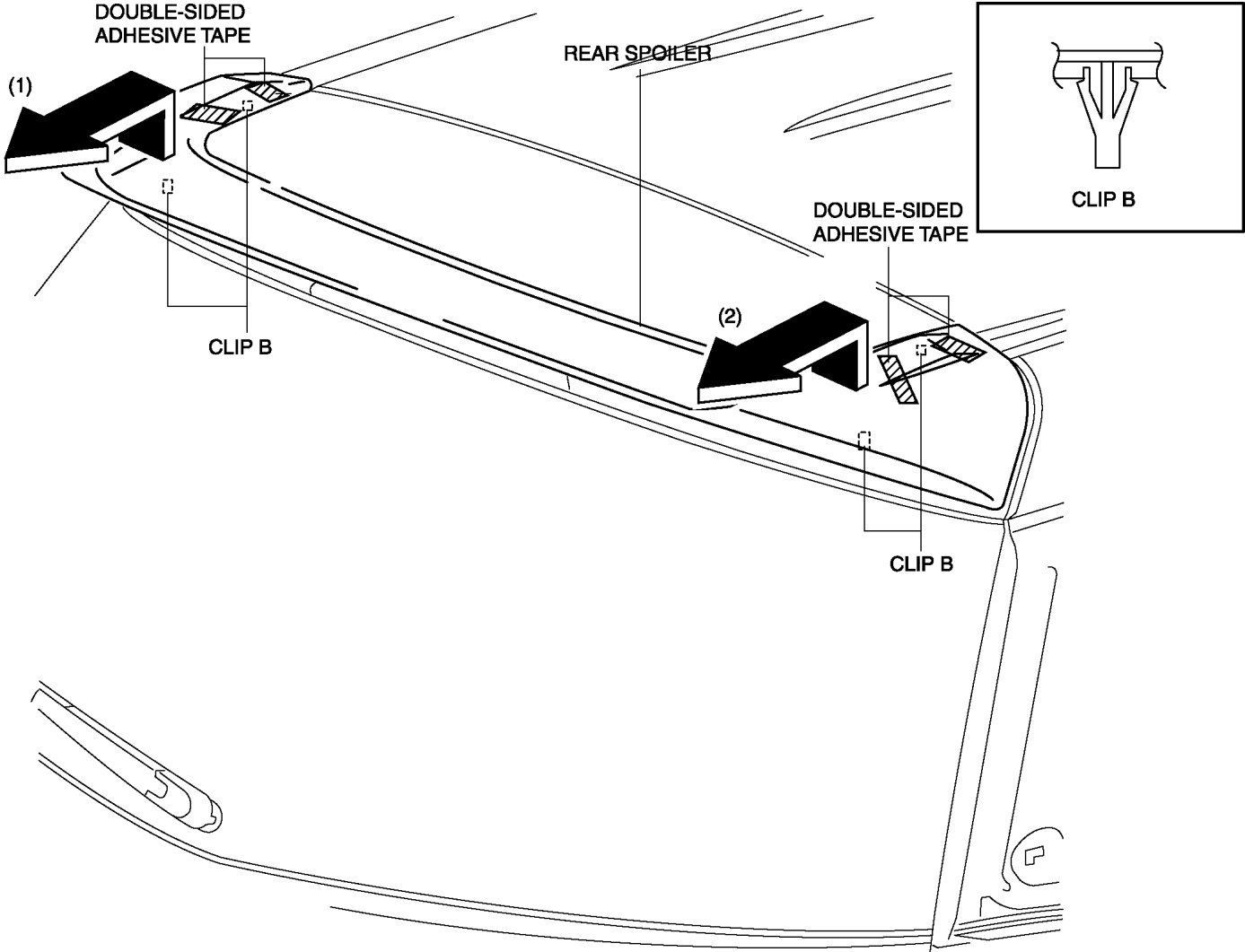

4. Pull the rear spoiler in the direction of the arrow (1), (2) while detaching the clips B and double-sided adhesive tape.






5. Remove the rear spoiler.

6. Install in the reverse order of removal.

Double-sided Adhesive Tape Installation Note

1. When installing a new rear spoiler, perform the following procedure:
a. Remove the double-sided adhesive tape on the liftgate.

b. Remove any grease or dirt from the affixing surface of the liftgate.

2. If the rear spoiler is to be reused, perform the following procedure:
a. Remove the double-sided adhesive tape remaining on the rear spoiler and liftgate after removal.

b. Remove any grease and dirt from the double-sided adhesive tape affixing area.

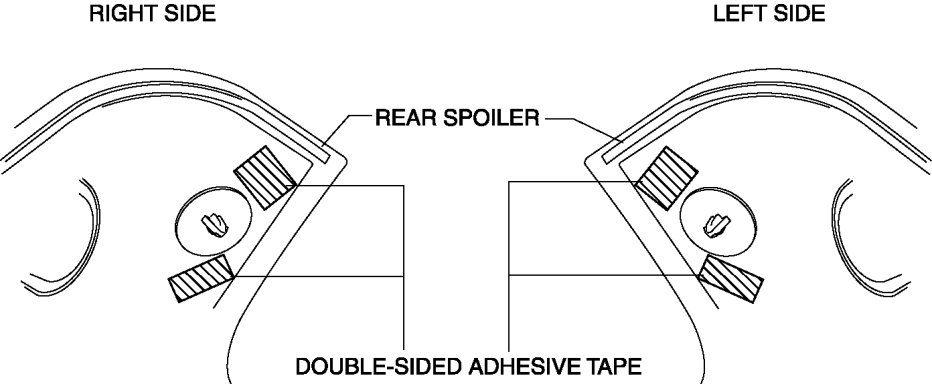

c. Affix double-sided adhesive tape to the position shown in the figure.






NOTE:
- Use the 3M GT7130-type of double-sided adhesive tape, or the equivalent.
