MUDGUARD REMOVAL/INSTALLATION

Front

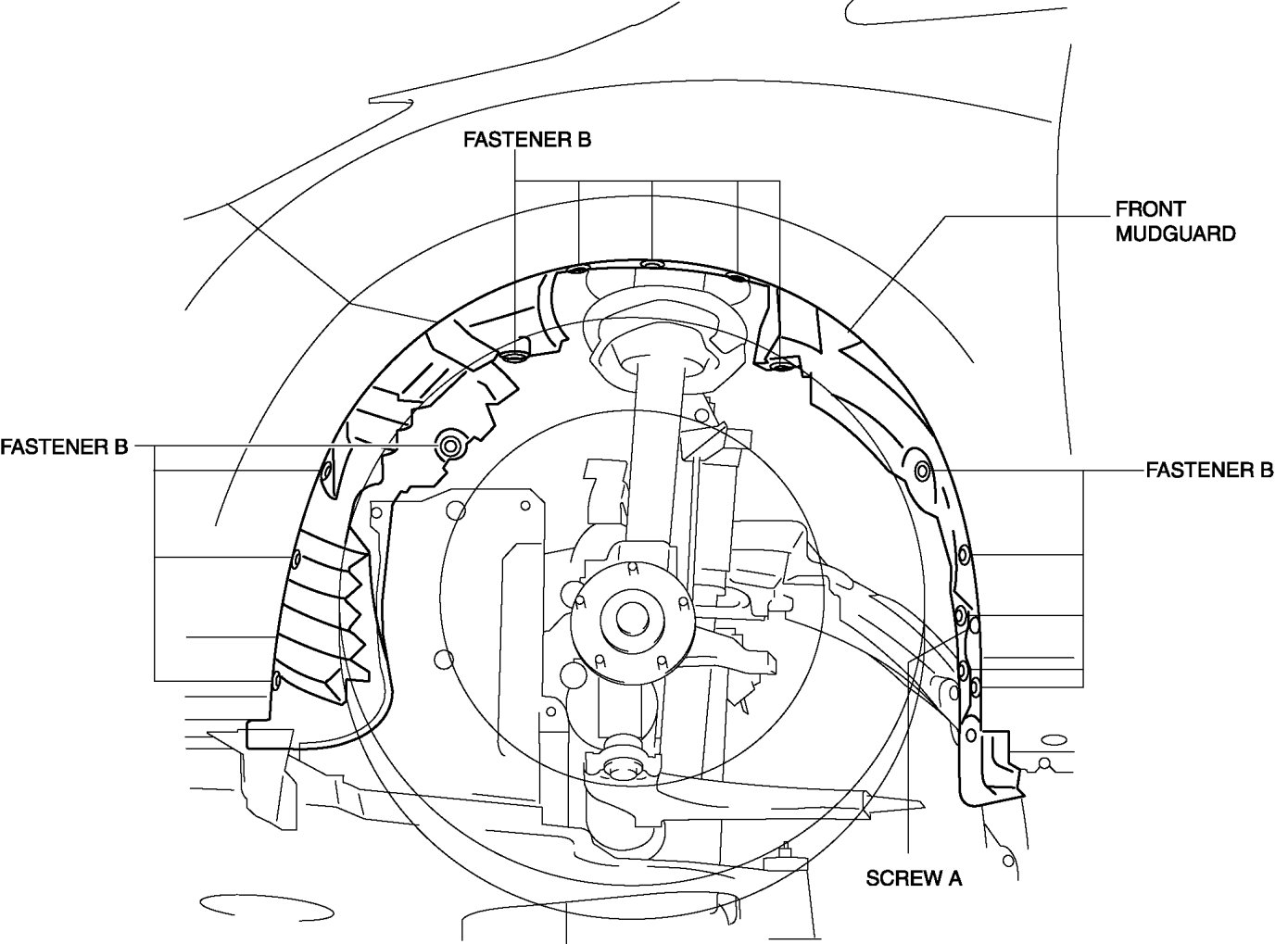

1. Remove the screw A.






2. Remove the fastener B.

3. Pull the front mudguard in the direction of the arrow shown in the figure and remove it.






4. Install in the reverse order of removal.

Rear

1. Remove the rear splash shield. Service and Repair

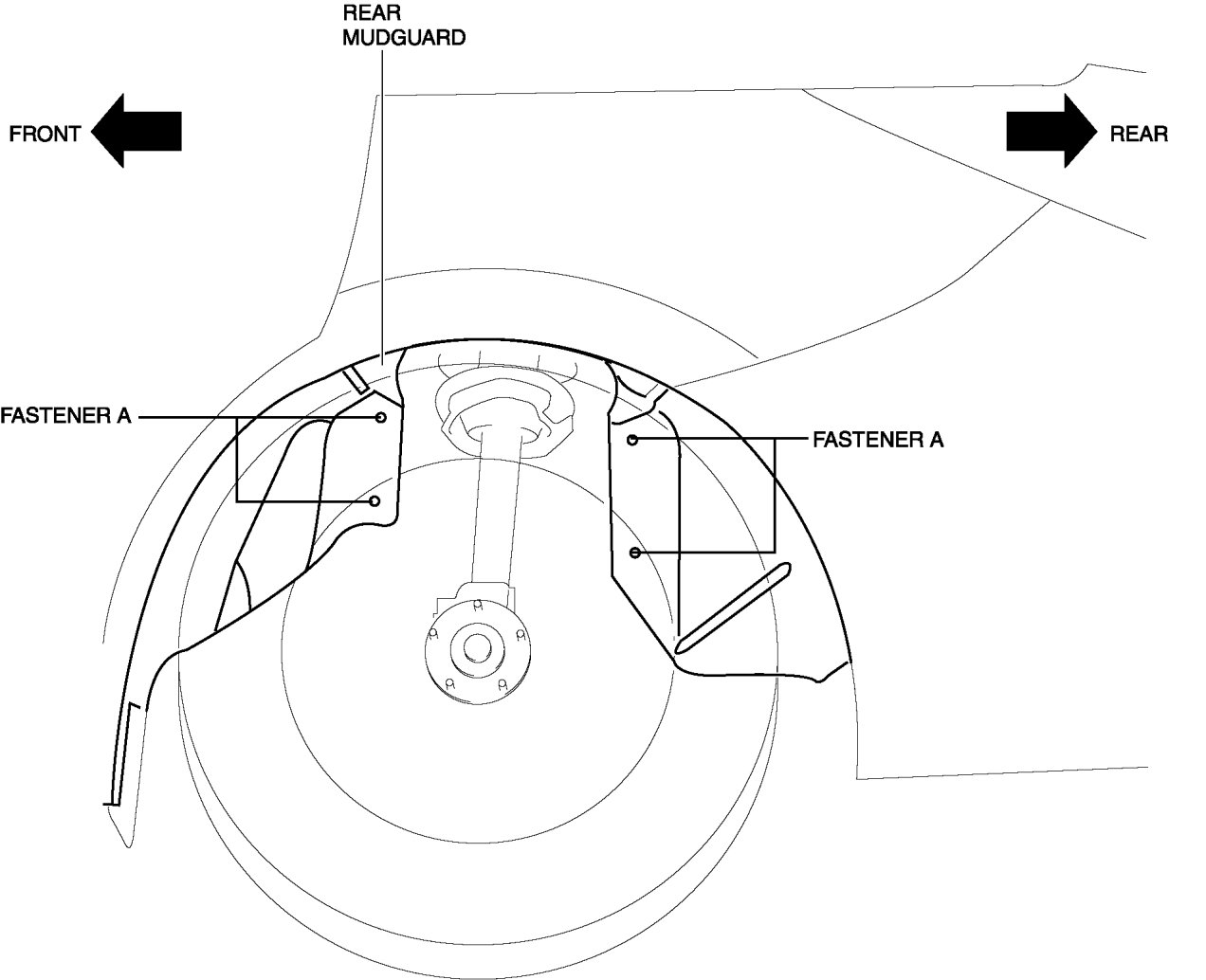

2. Remove the fastener A.

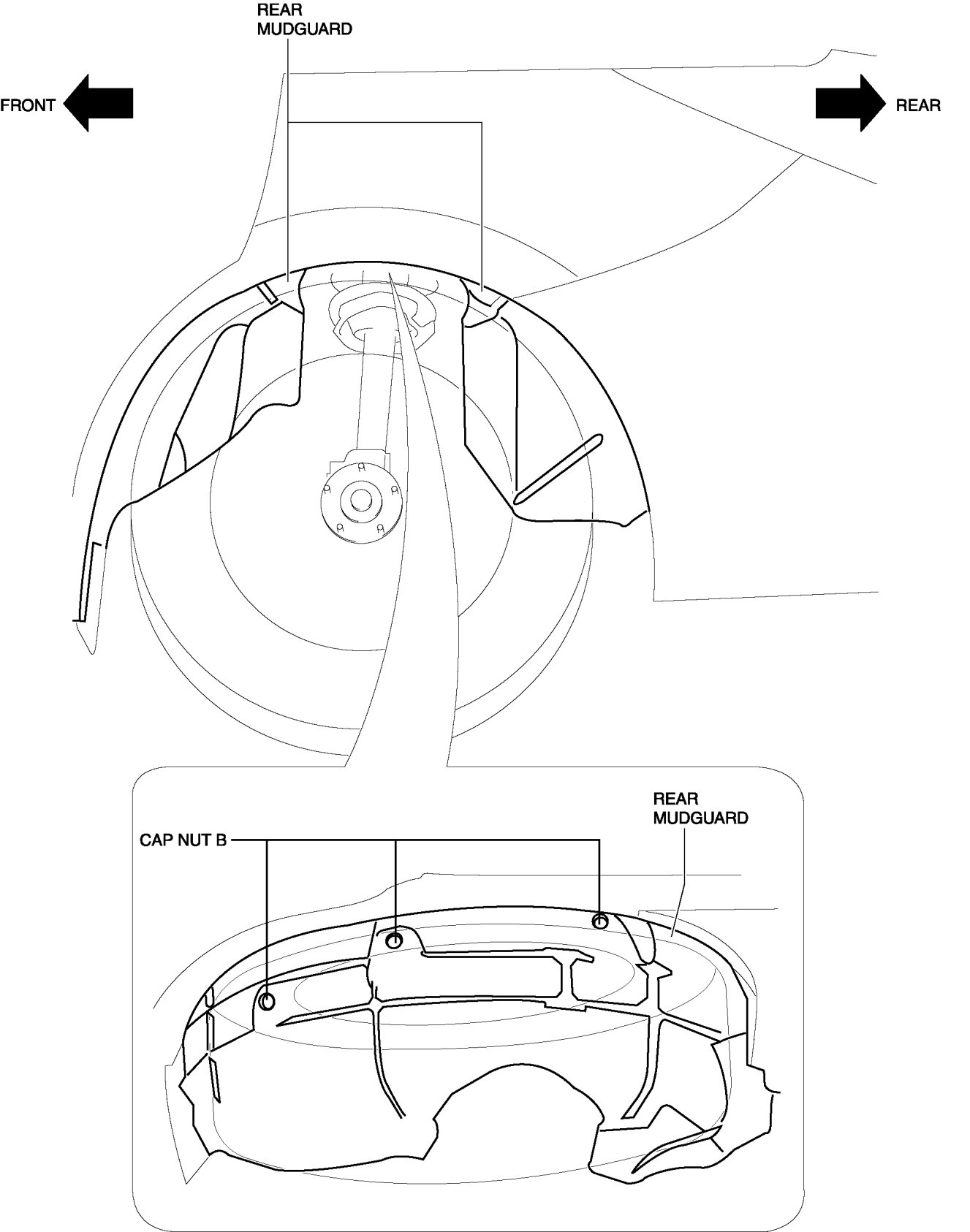

3. Remove the cap nut B.

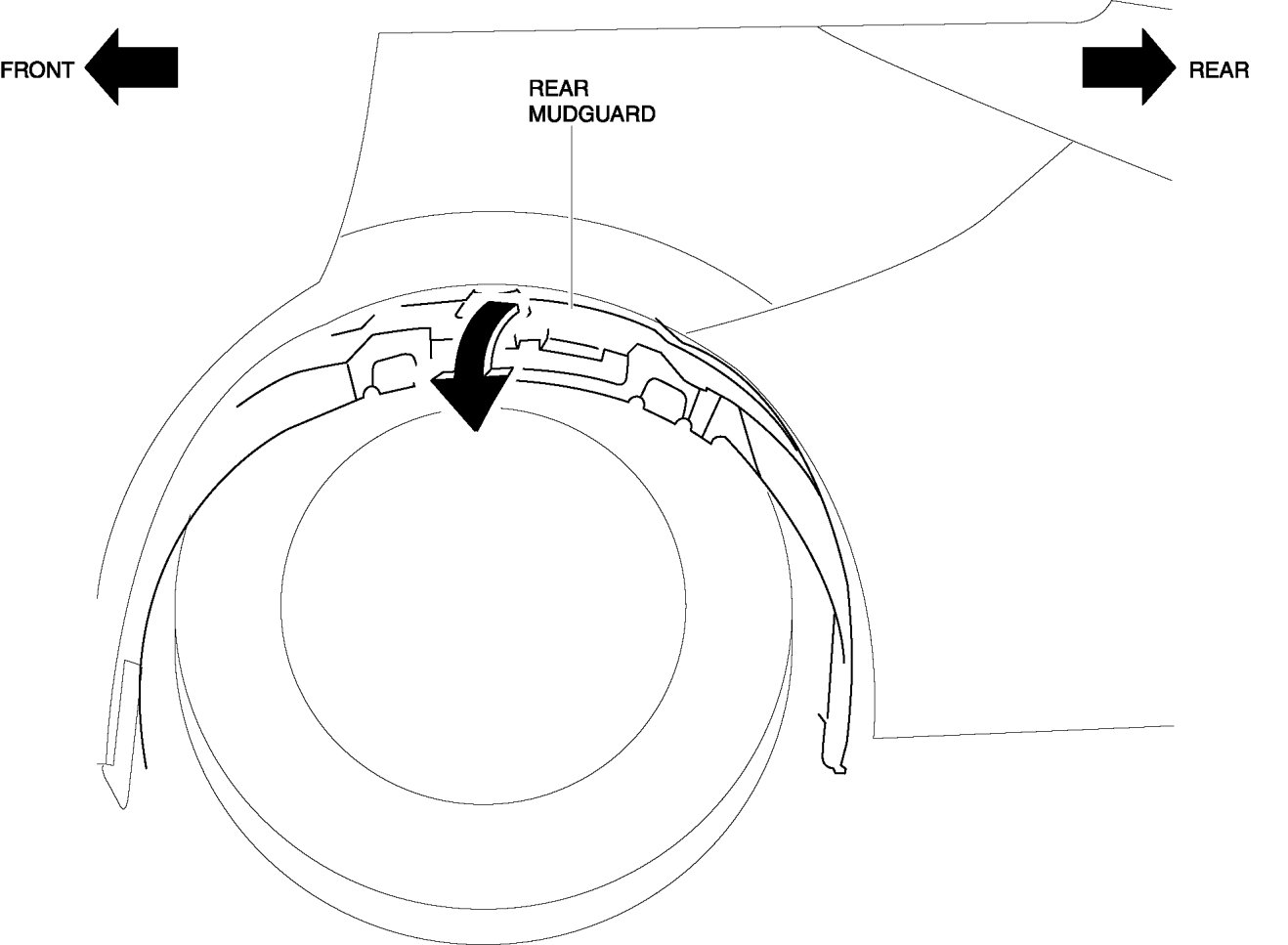

4. Pull the mudguard in the direction of the arrow shown in the figure and remove it.






5. Install in the reverse order of removal.
