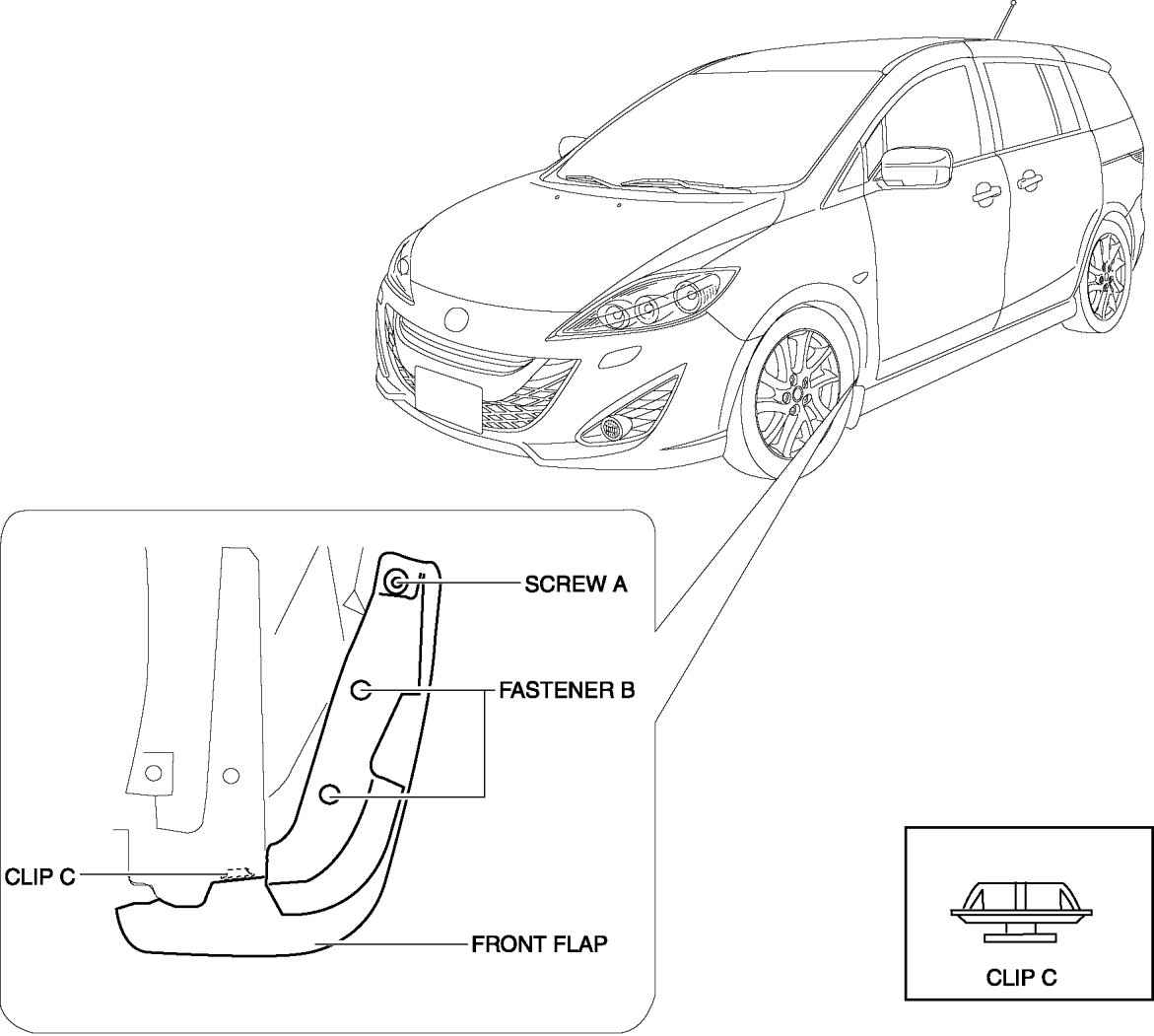

Front Flap Removal/Installation

FRONT FLAP REMOVAL/INSTALLATION

1. Remove the screw A and fasteners B.






2. Detach the clip C, then remove the front flap.

3. Install in the reverse order of removal.
