Sunroof / Moonroof Windguard: Service and Repair

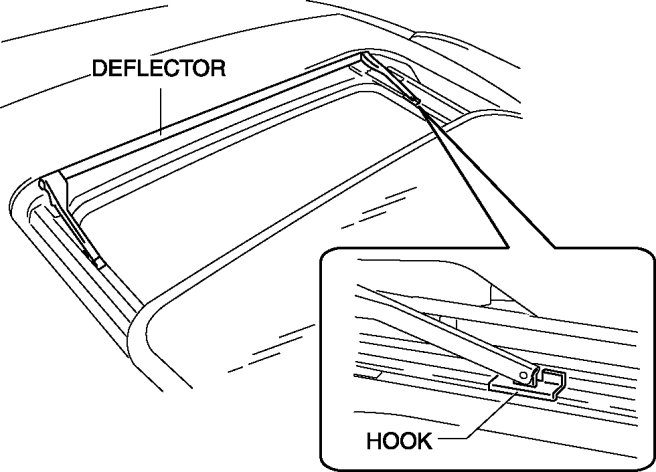

DEFLECTOR REMOVAL/INSTALLATION
1.
Fully open the glass panel.
2.
Disconnect the negative battery cable.
3.
Unhook and remove the deflector.
4.
Install in the reverse order of removal.
