Outer Mirror Glass Removal

OUTER MIRROR GLASS REMOVAL

1. Disconnect the negative battery cable.

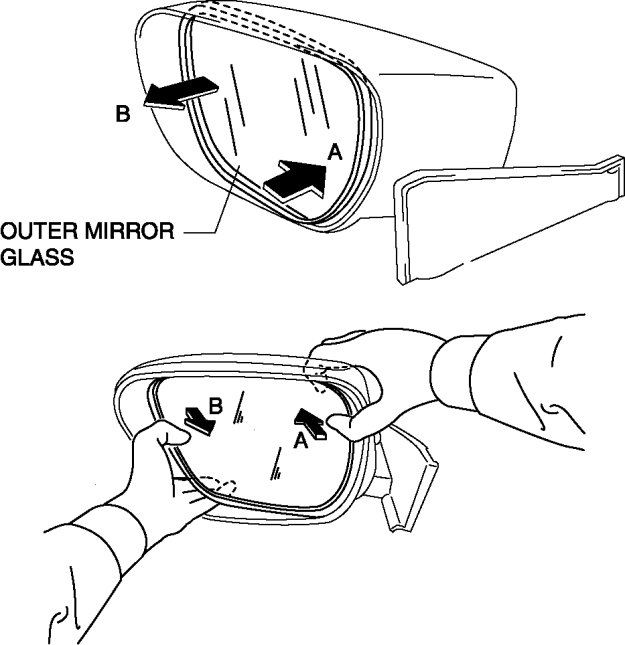

2. Press area A of the outer mirror glass shown in the figure so that area B moves outward.

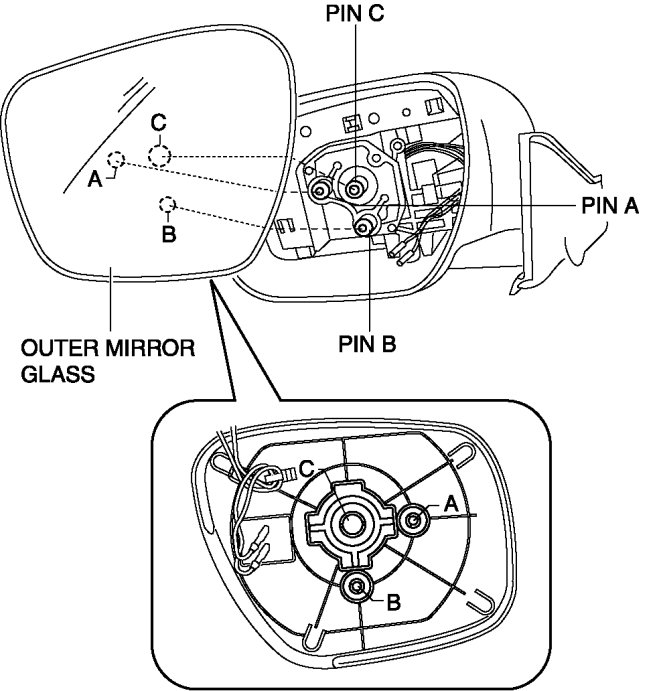

3. Detach pin A while lifting up the inside of the outer mirror glass.






4. Pull the outer mirror glass and remove pins B and C.

5. Disconnect the heated outer mirror connector (vehicles with heated outer mirror).






6. Remove the outer mirror glass.
