Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
5 L4-2.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Switch
>>
Locations
>>
Component Locations
Component Locations

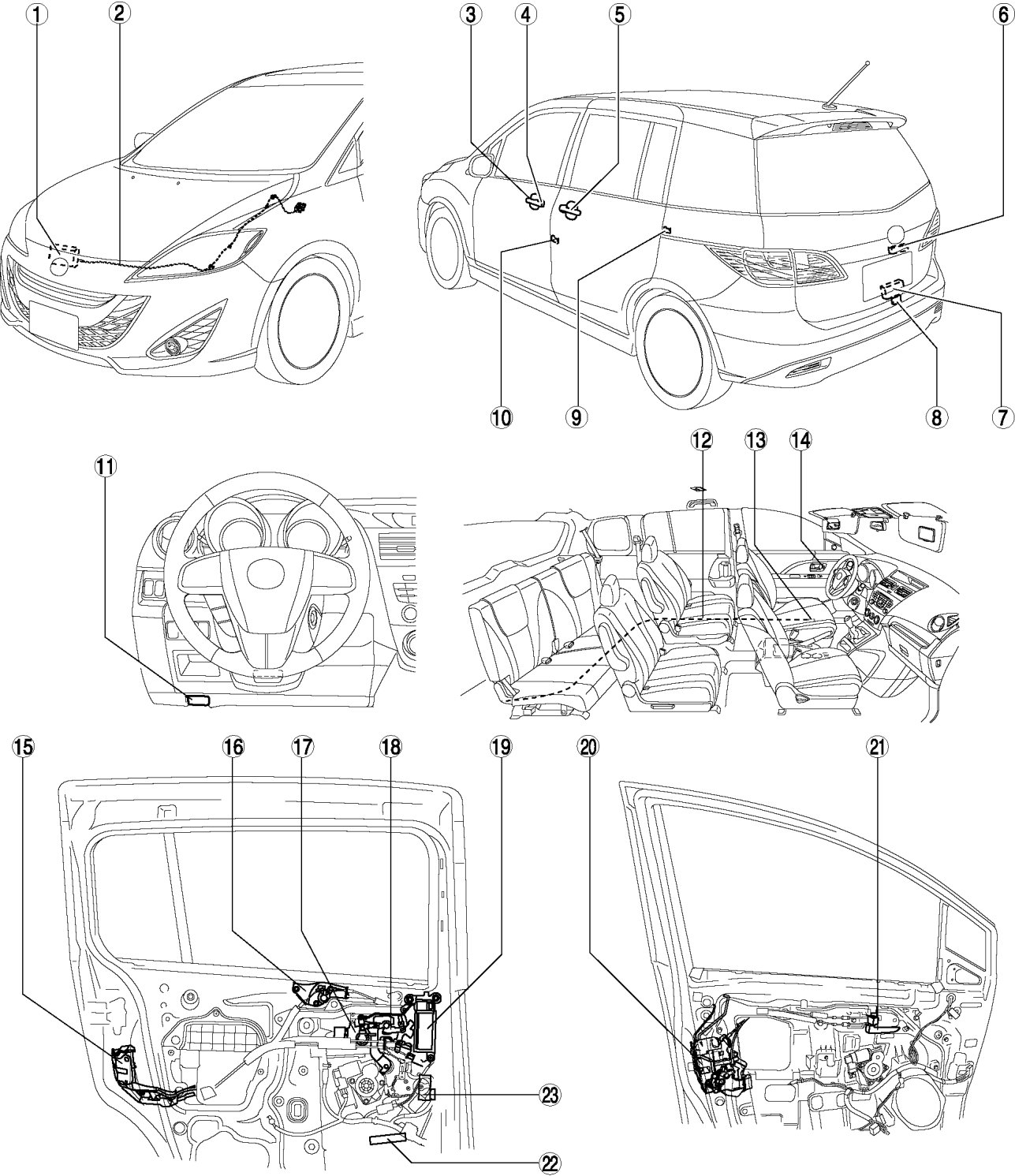

SECURITY AND LOCKS LOCATION INDEX

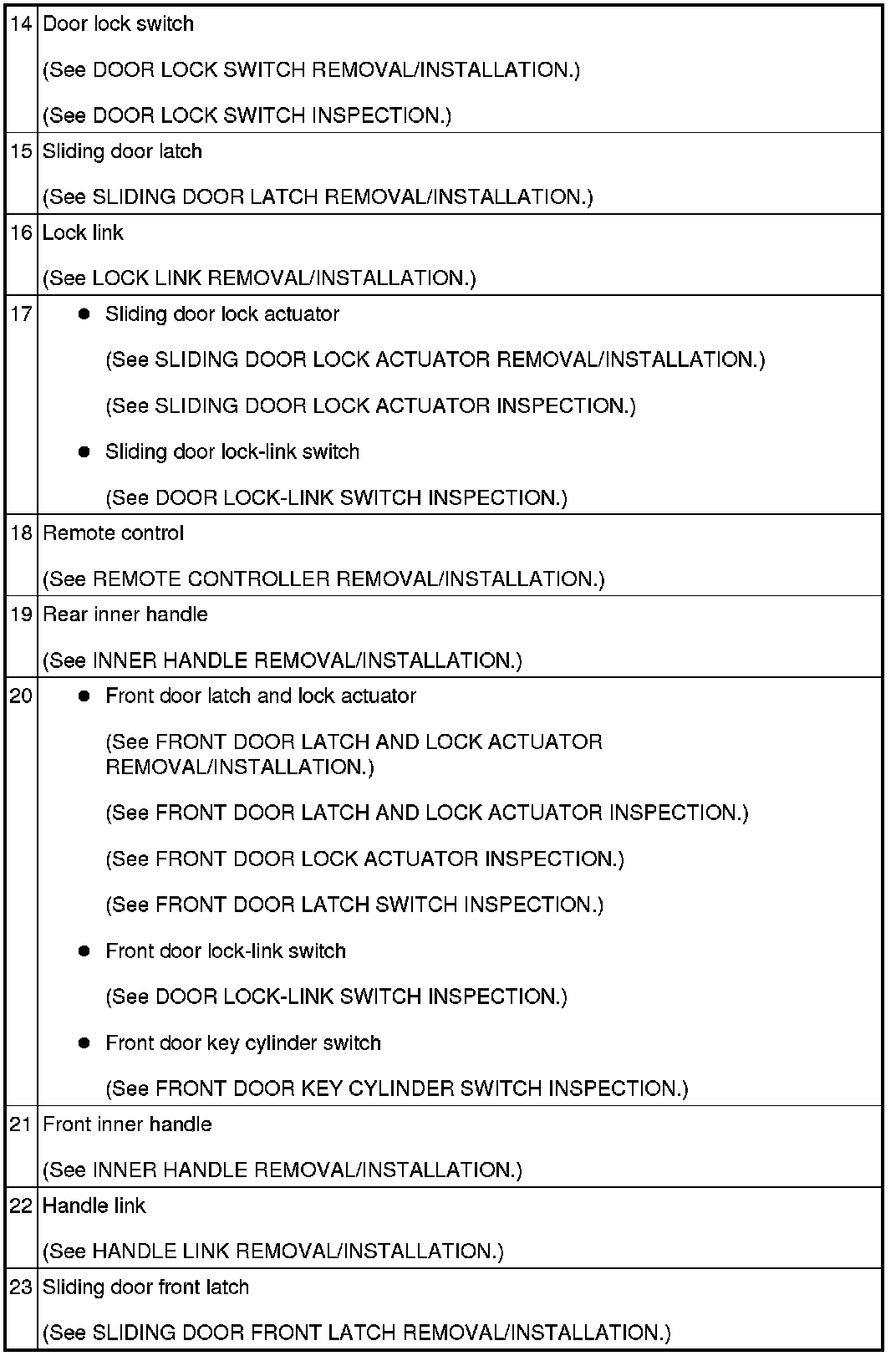

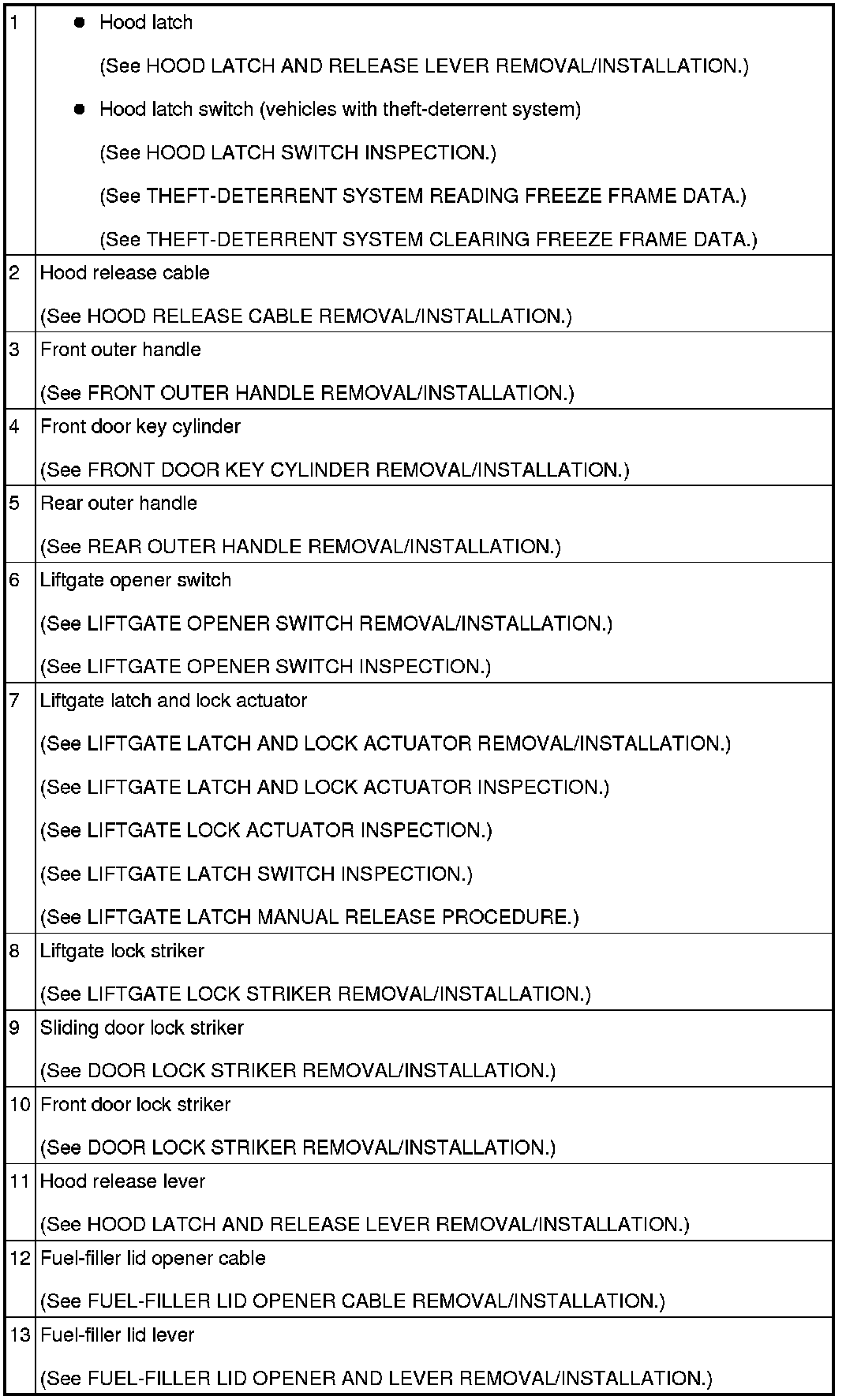

Locks and Openers

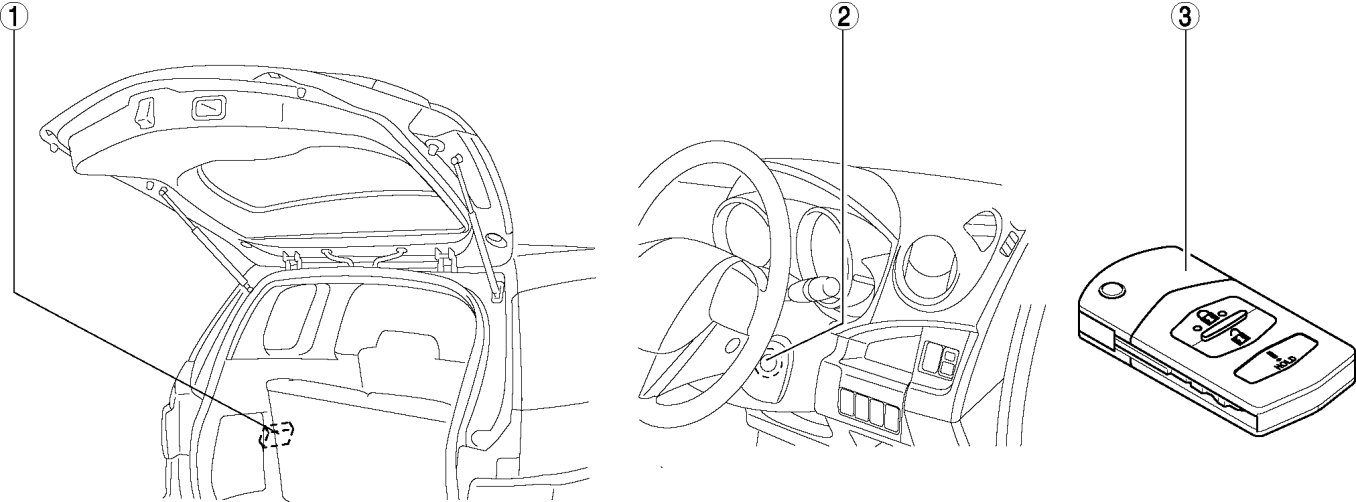

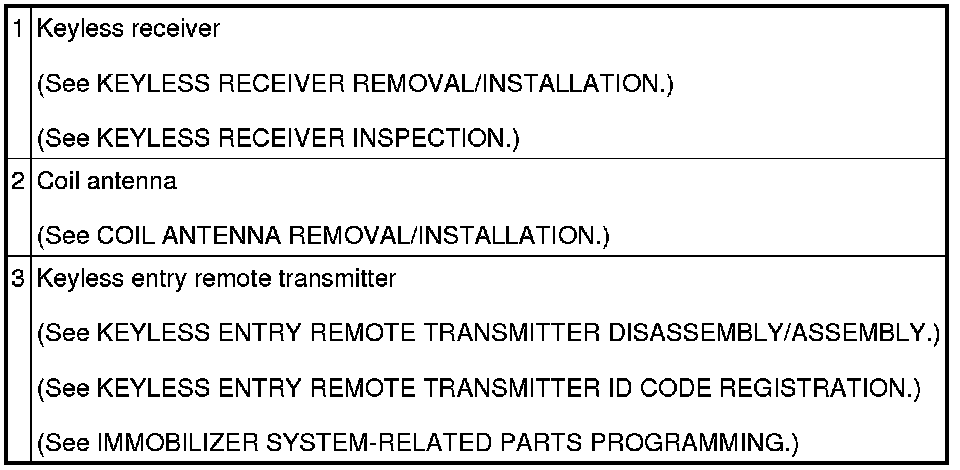

Keyless entry system/Immobilizer system
