Lower Side Moulding / Trim: Service and Repair

SLIDE DOOR GARNISH REMOVAL/INSTALLATION

1. Remove the screw A.

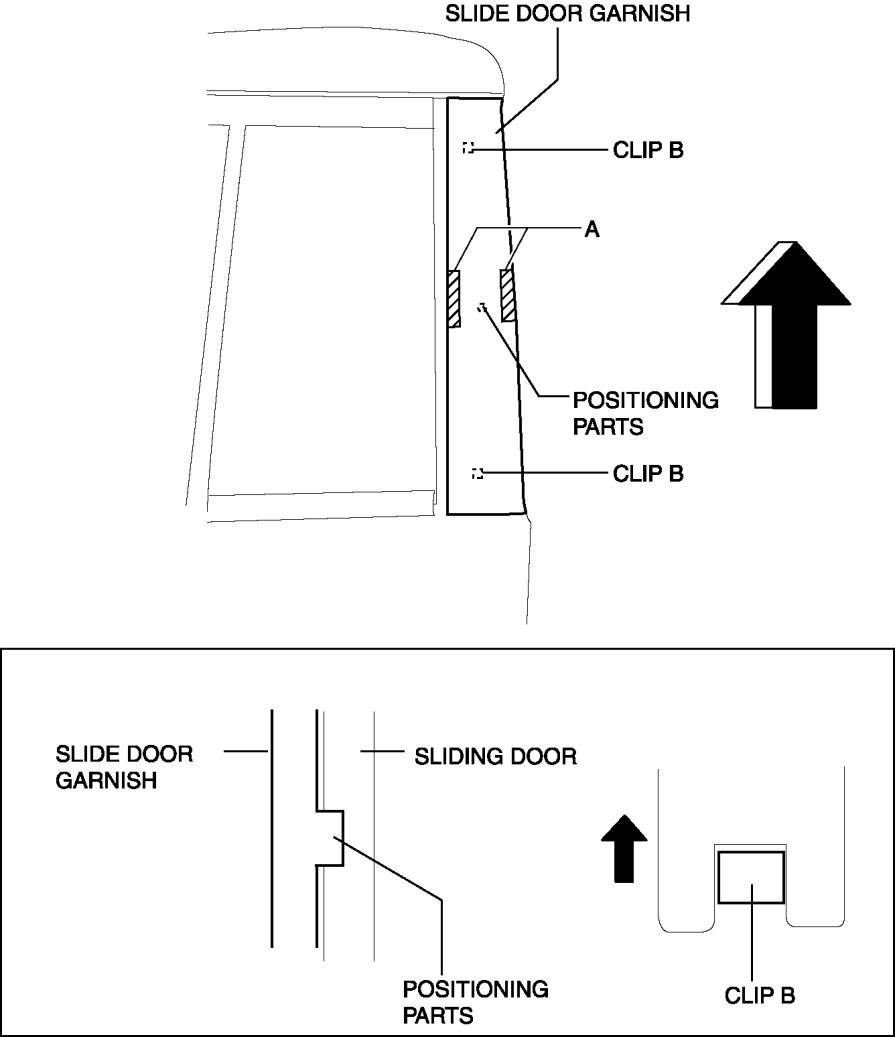

2. Pull the slide door garnish area A outward then remove the positioning parts.






3. Pull the slide door garnish in the direction of the arrow shown in the figure, then remove it while detaching the clip B from the body.

4. Remove the slide door garnish.

5. After removing the slide door garnish, remove clips B from the body using the fastener remover.

6. Install in the reverse order of removal.
