Cowl Grille Removal/Installation

COWL GRILLE REMOVAL/INSTALLATION

1. Remove the windshield wiper arm and blade. Windshield Wiper Arm And Blade Removal/Installation

2. Remove the fastener A.

3. Pull the front fender molding in the direction of the arrow shown in the figure and remove it while remove the tab B.

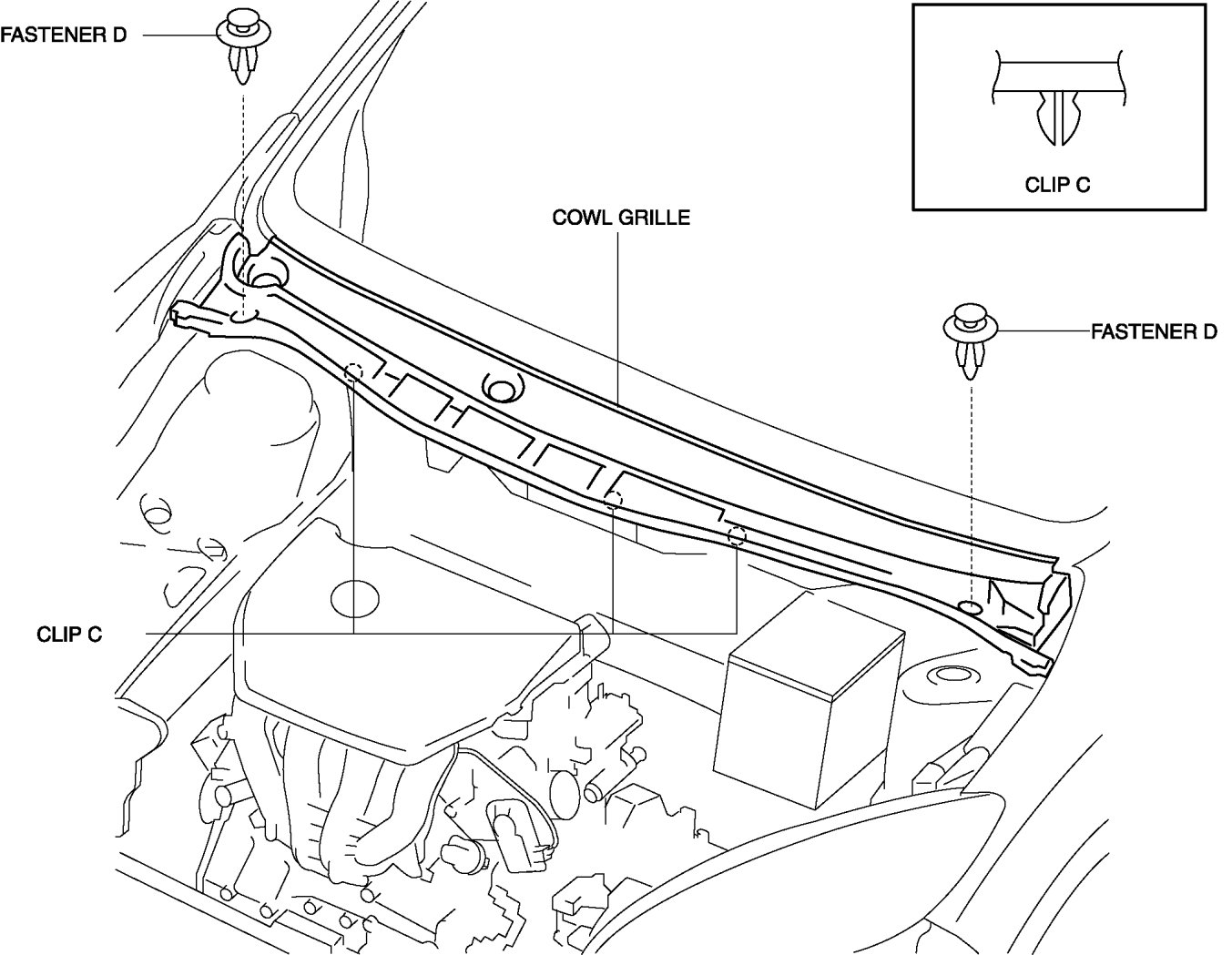

4. Remove the clip C.






5. Remove the fastener D.

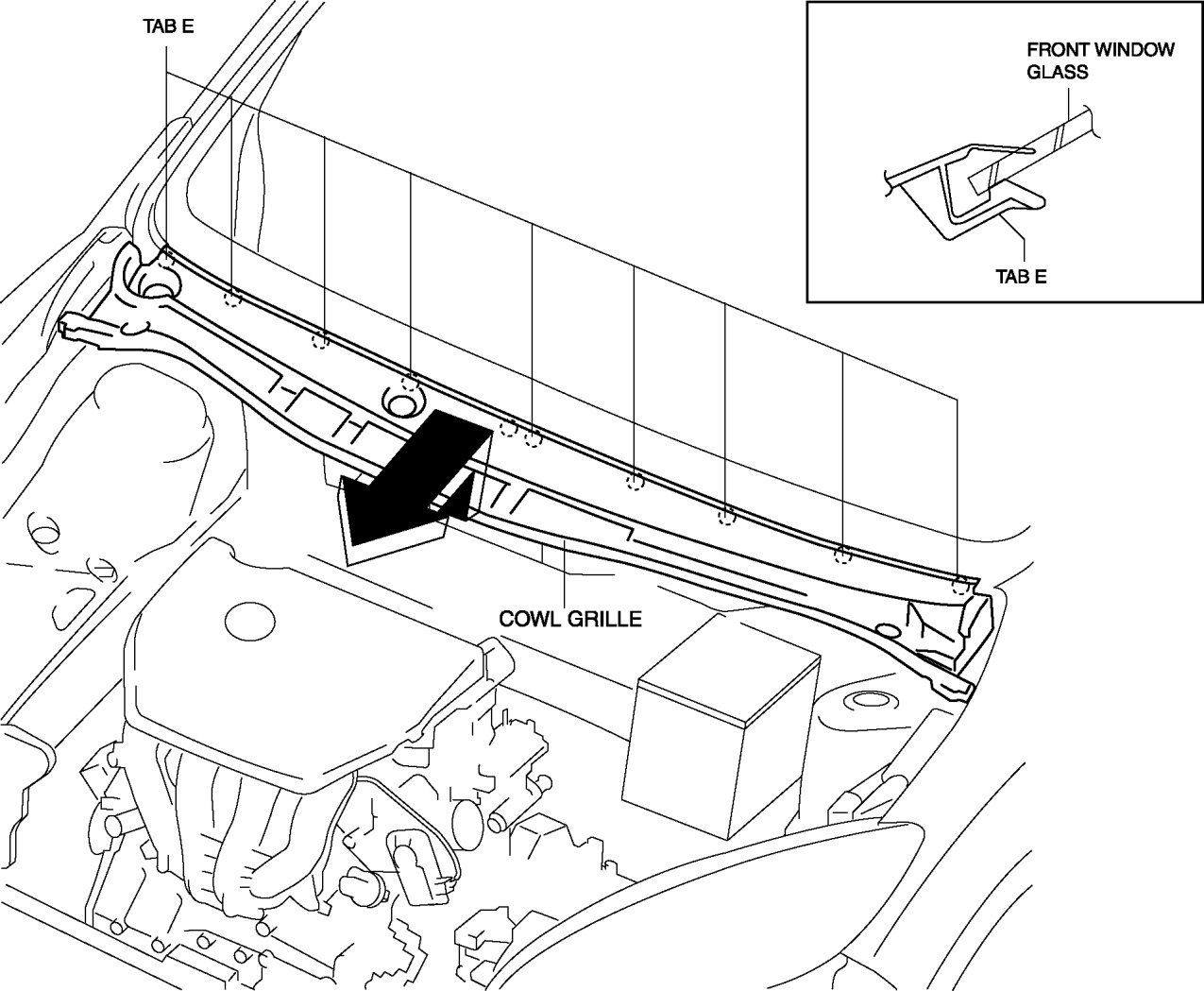

6. Pull the cowl grille in the direction of arrow, then remove the tabs E from the windshield.






7. Remove the cowl grille.

8. Install in the reverse order of removal.
