Energy-Absorbing Foam Removal/Installation

ENERGY-ABSORBING FORM REMOVAL/INSTALLATION

Front

1. Disconnect the negative battery cable.

2. Remove the front bumper. Removal and Replacement

3. Remove the fastener A.

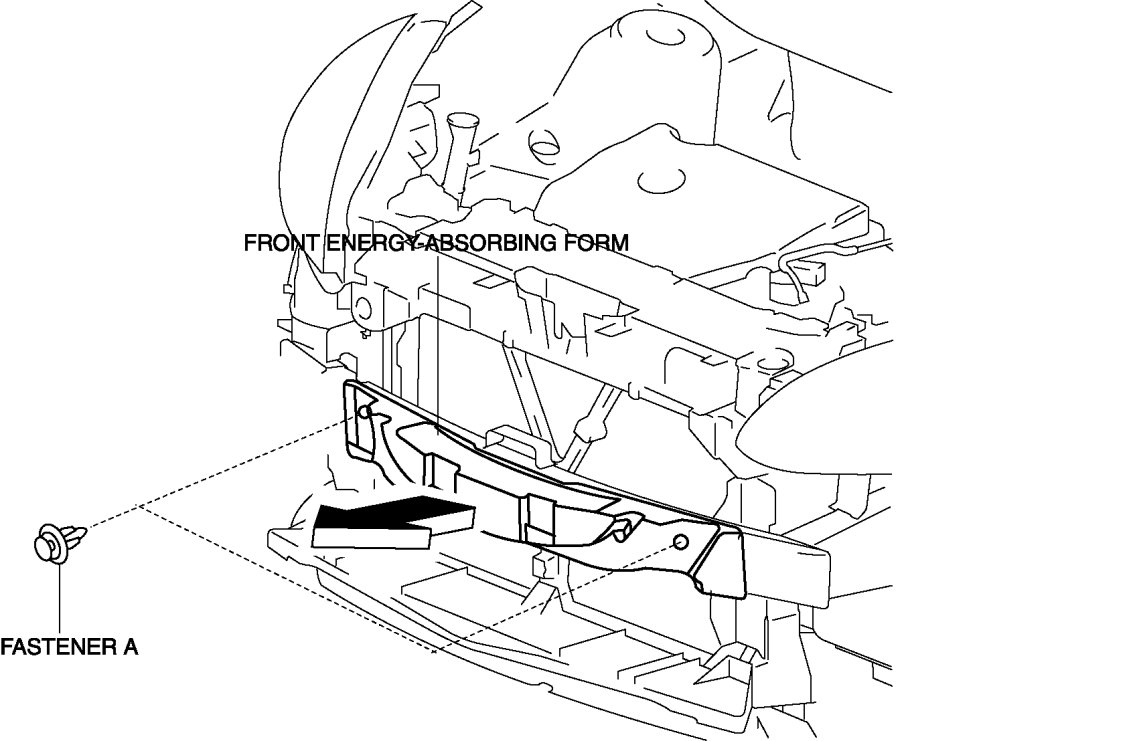

4. Pull the front energy-absorbing form in the direction of the arrow shown in the figure.

5. Remove the energy-absorbing form.

6. Install in the reverse order of removal.

Rear

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear combination light Service and Repair

b. Rear splash shield Service and Repair

c. Rear bumper Removal and Replacement

3. Remove the fastener A.

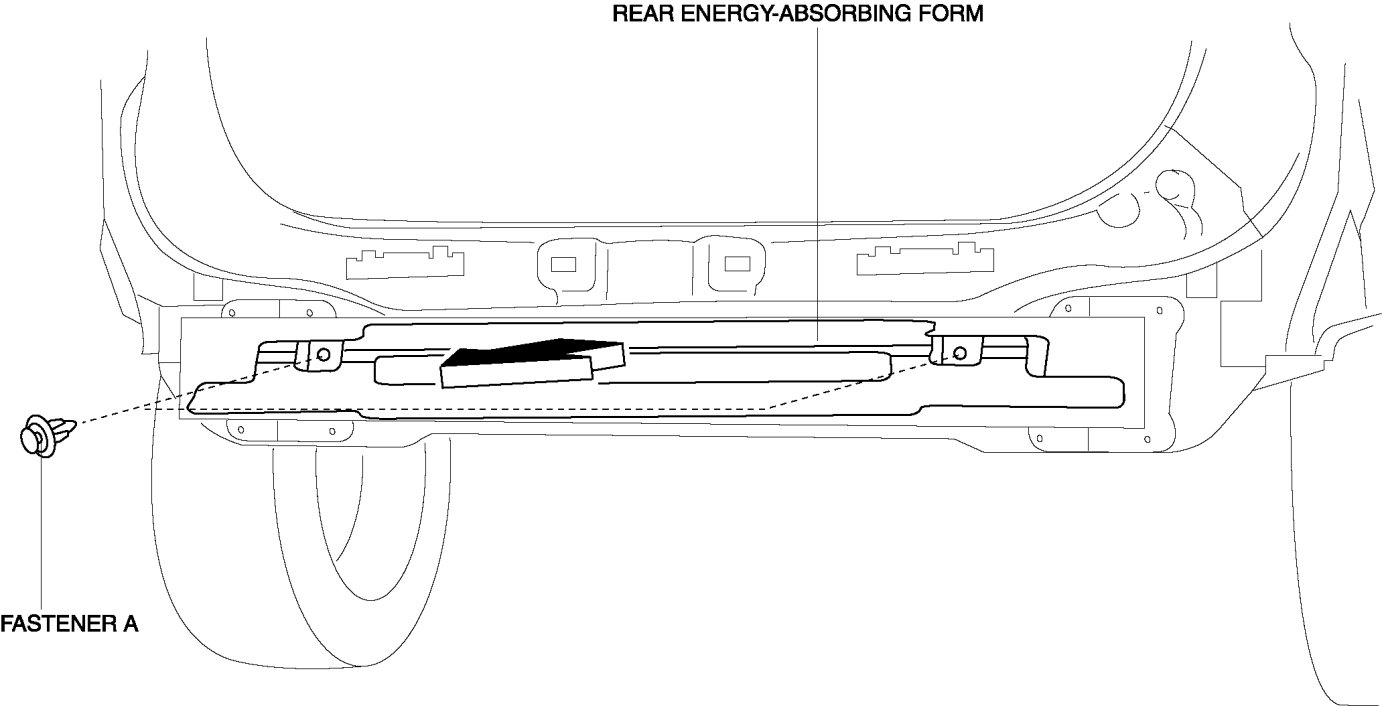

4. Pull the rear energy-absorbing form in the direction of the arrow shown in the figure.

5. Remove the rear energy-absorbing form.

6. Install in the reverse order of removal.
