Front Door Speaker Inspection

FRONT DOOR SPEAKER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front door speaker Front Door Speaker Removal/Installation

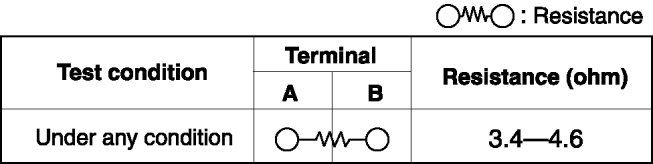

3. Verify the resistance between the front door speaker terminals.






- If not within the specification, replace the front door speaker.
