Radio Tuner: Service and Repair

SIRIUS SATELLITE RADIO UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Passenger-side front scuff plate Front Scuff Plate Removal/Installation

b. Passenger-side front side trim Front Side Trim Removal/Installation

c. Side wall Side Wall Removal/Installation

d. Center console box Center Console Box Removal/Installation

e. Console panel Console Panel Removal/Installation

f. Center console Center Console Removal/Installation

g. Shift lever knob (MTX) Service and Repair

h. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

i. Shift panel Shift Panel Removal/Installation

j. Front console Front Console Removal/Installation

k. Side panel Side Panel Removal/Installation

l. Glove compartment Service and Repair

m. Dashboard under cover Dashboard Under Cover Removal/Installation

n. Passenger-side lower panel Lower Panel Removal/Installation

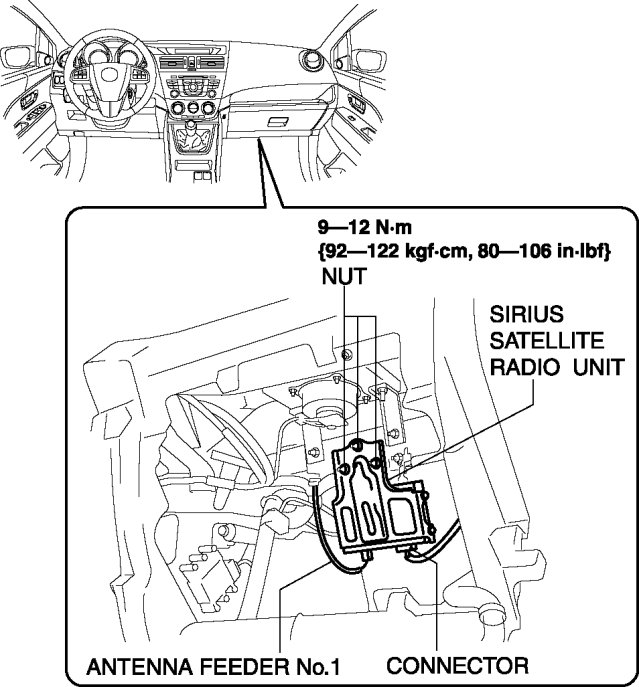

3. Disconnect the antenna feeder No.1.






4. Disconnect the connector.

5. Remove the nut.

6. Remove the SIRIUS satellite radio unit.

7. Install in the reverse order of removal.
