Security Indicator Light: 16
Security Indicator Light: 16

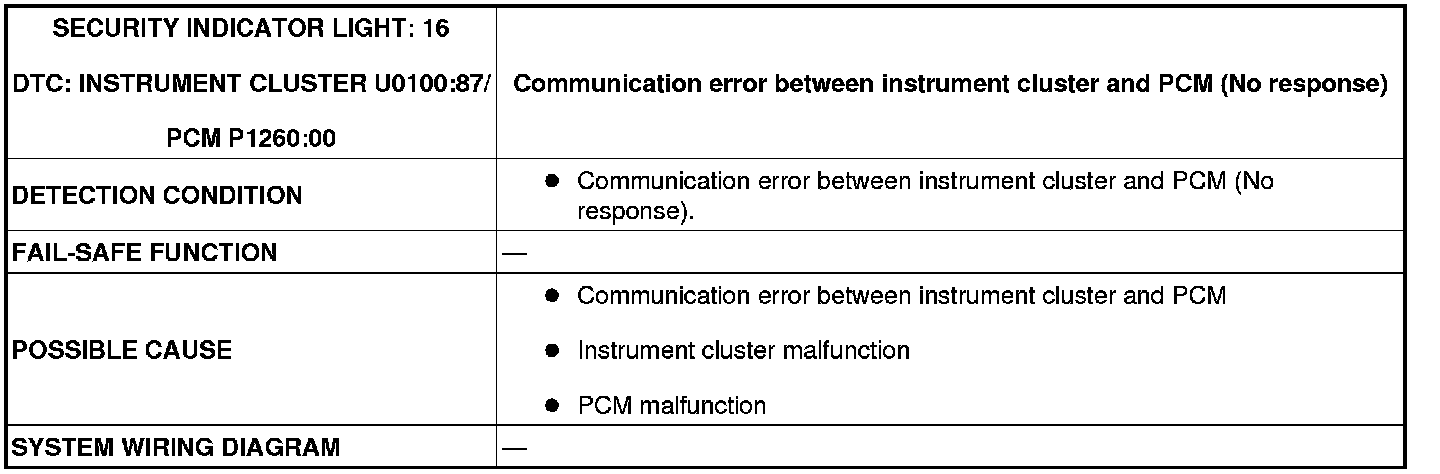

SECURITY INDICATOR LIGHT: 16, DTC: U0100:87 / P1260:00 [IMMOBILIZER SYSTEM]

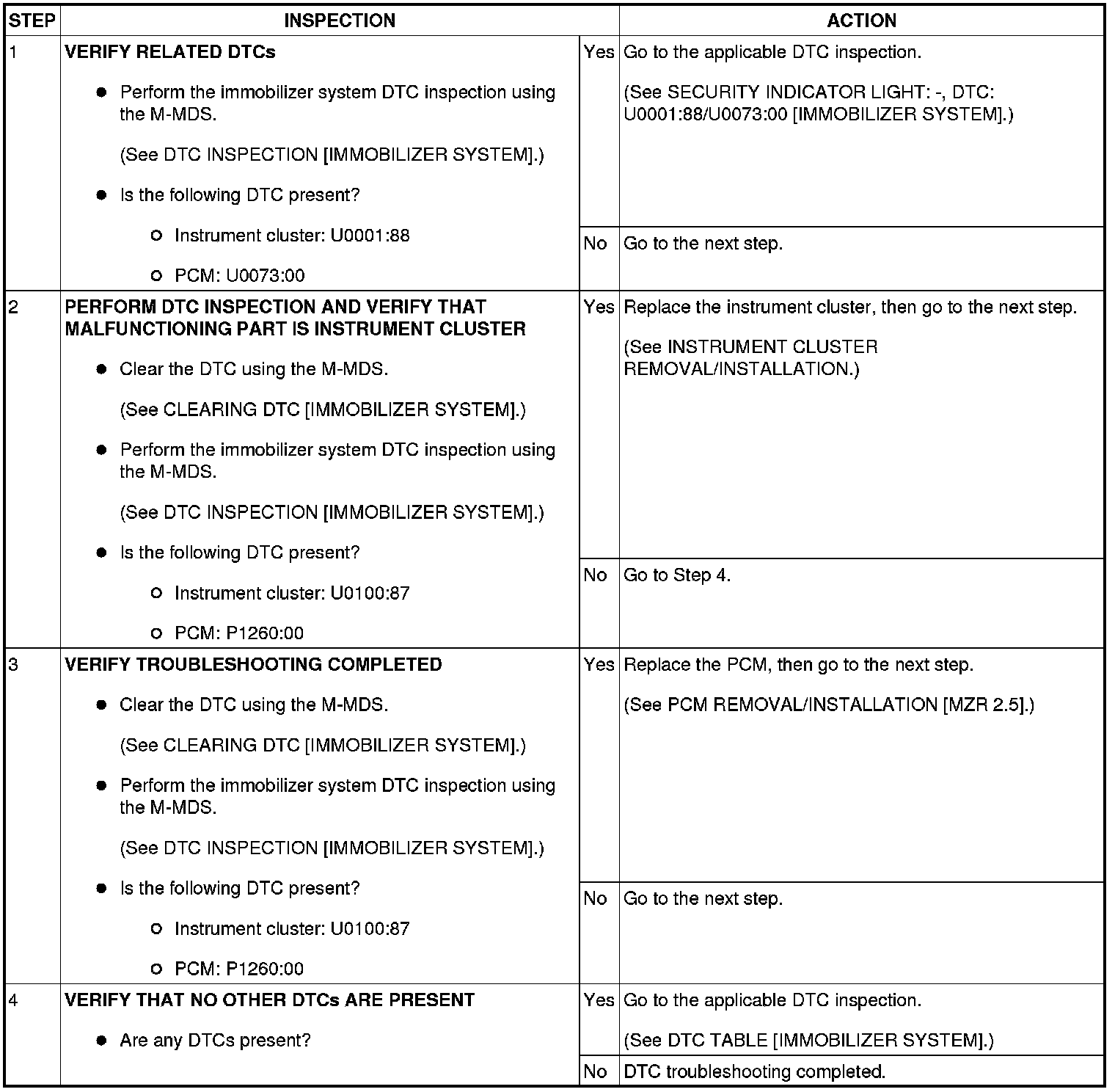

Diagnostic Procedure
