Pinout Values and Diagnostic Parameters

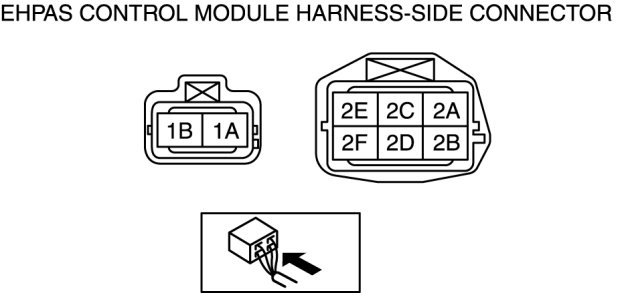

ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE INSPECTION

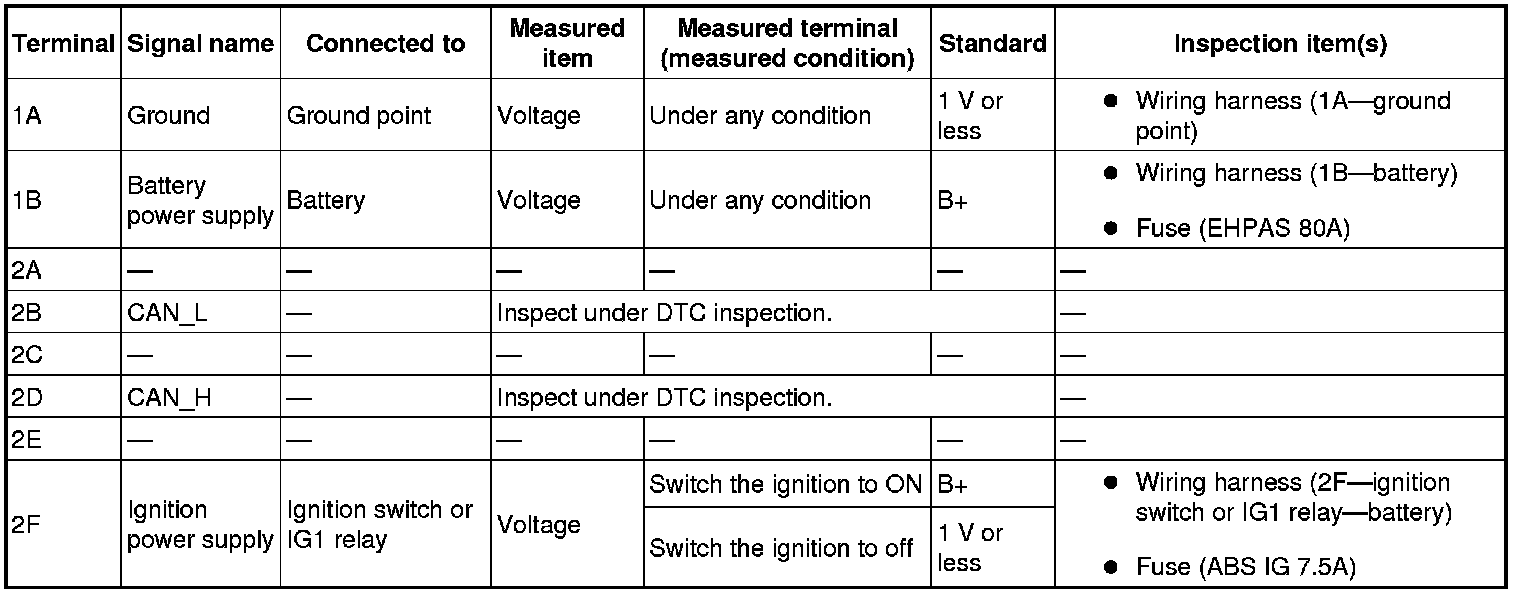

Terminal Voltage Table (Reference)
