Bass-Box Removal/Installation

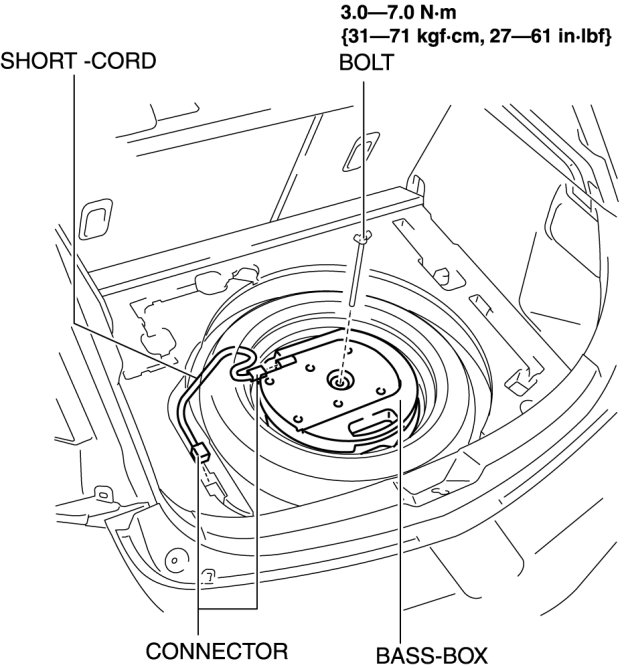

BASS-BOX REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Disconnect the connector.






3. Remove the short-cord.

4. Remove the bolt.

5. Remove the bass-box.

6. Install in the reverse order of removal.
