Reverse Idler Gear Component Disassembly
REVERSE IDLER GEAR
COMPONENT DISASSEMBLY

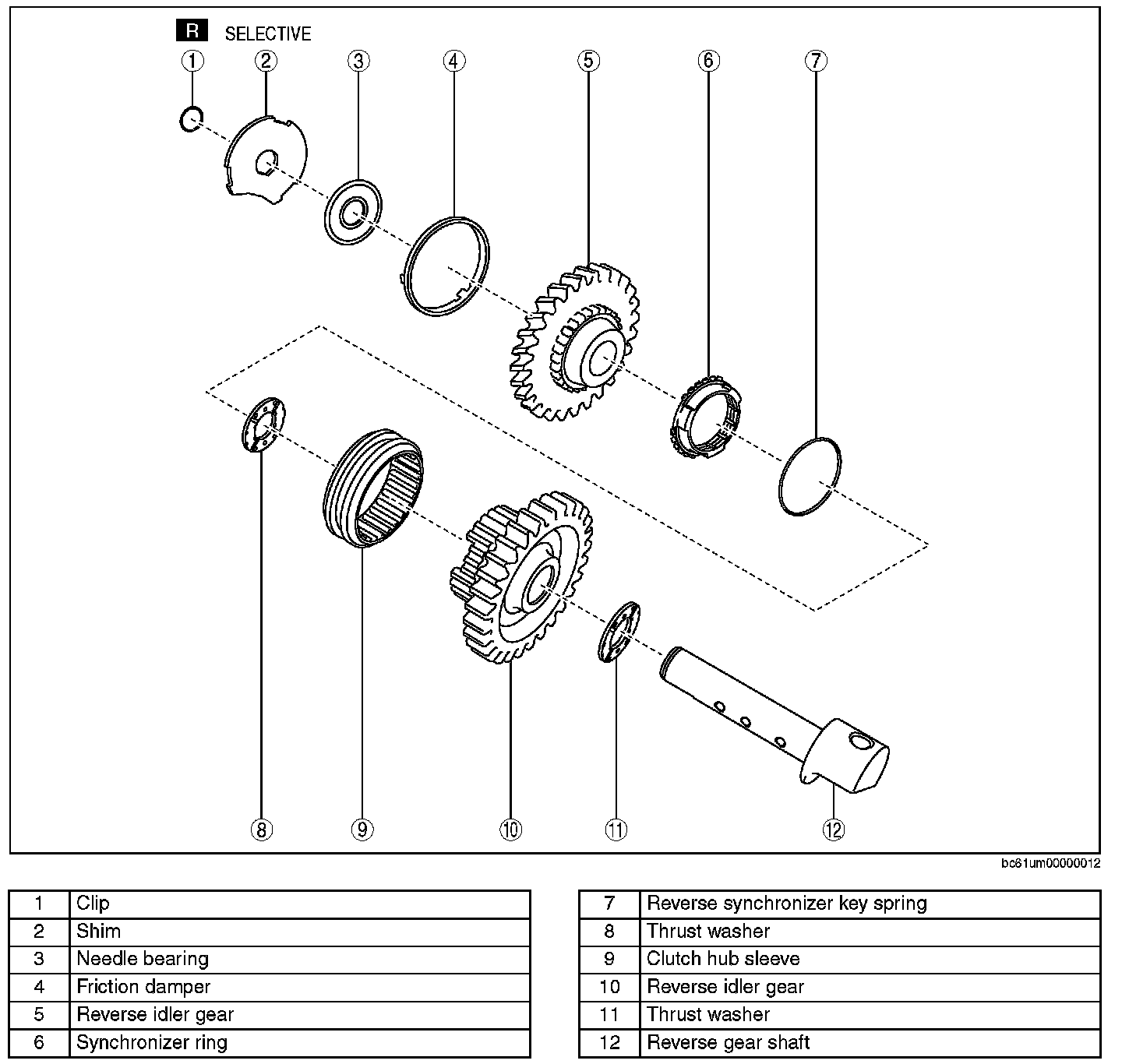

1.
Disassemble the
reverse idler gear
component in the order shown in the figure.
