On-Board Diagnostic System Wiring Diagram [FW6A-EL]

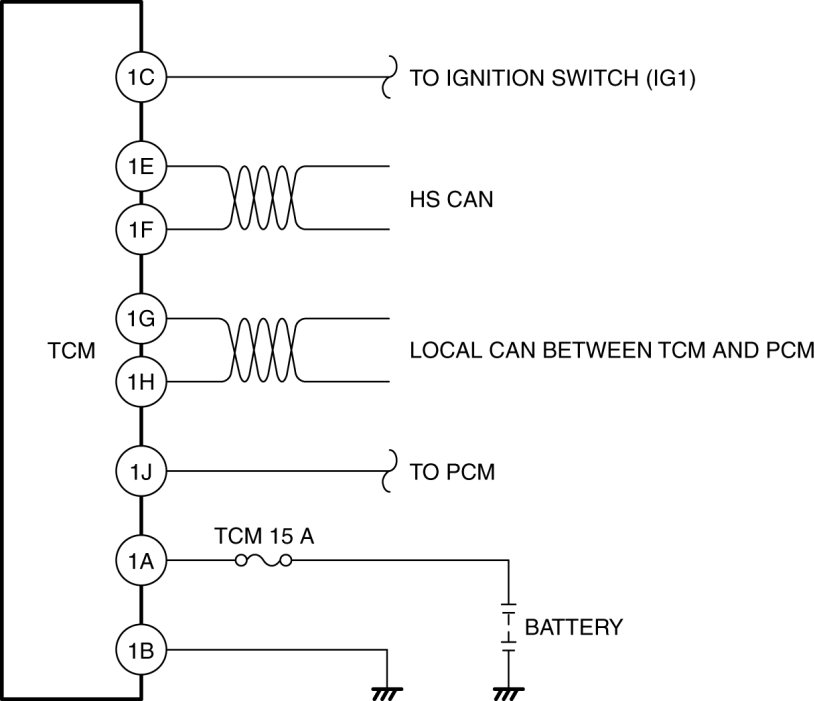

ON-BOARD DIAGNOSTIC SYSTEM WIRING DIAGRAM [FW6A-EL]
