Rear Washer Nozzle Removal/Installation

REAR WASHER NOZZLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim.

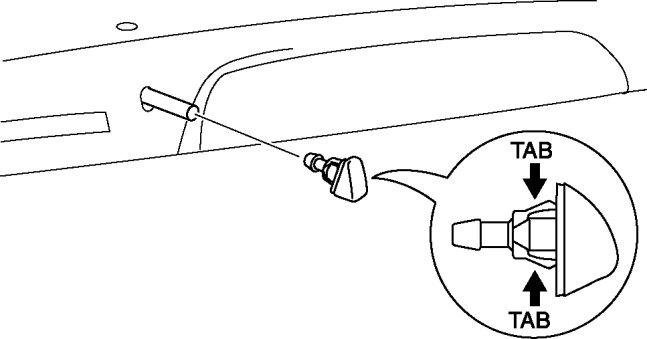

3. Release the tabs in the direction of the arrow shown in the figure and remove the rear washer nozzle.






4. Install in the reverse order of removal.

5. Adjust the spray area of the rear washer nozzle. Rear Washer Nozzle Adjustment
