Seat Belt Reminder Lamp: Testing and Inspection

PASSENGER SEAT BELT REMINDER INSPECTION

1. Remove the passenger seat belt reminder. Overhaul

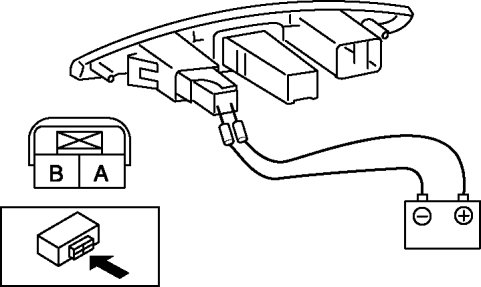

2. Apply battery positive voltage to passenger seat belt reminder terminal A, and connect terminal B to ground.






3. Verify that the LED illuminates.

- If the LED does not illuminate, replace the passenger seat belt reminder.
