Canister Vent Valve: Testing and Inspection

CANISTER VENT (CV) SOLENOID VALVE INSPECTION [MZR 1.5]

Airflow Inspection

1. Disconnect the negative battery cable. (See Removal and Replacement.)

2. Remove the CV solenoid valve. (See Service and Repair.)

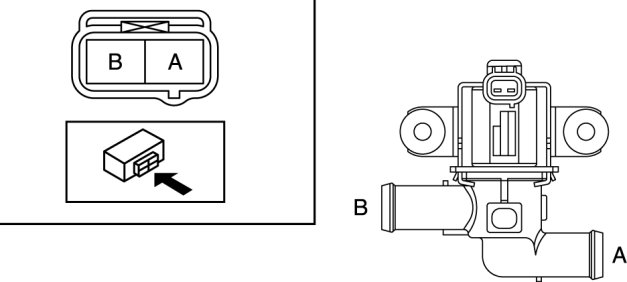

3. Inspect airflow between the ports under the following conditions.










- If not as specified, replace the CV solenoid valve. (See Service and Repair.)
